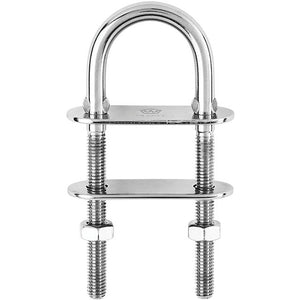

Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32" [06514]

SKU: C-97687

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 mm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.251 / (g) 114

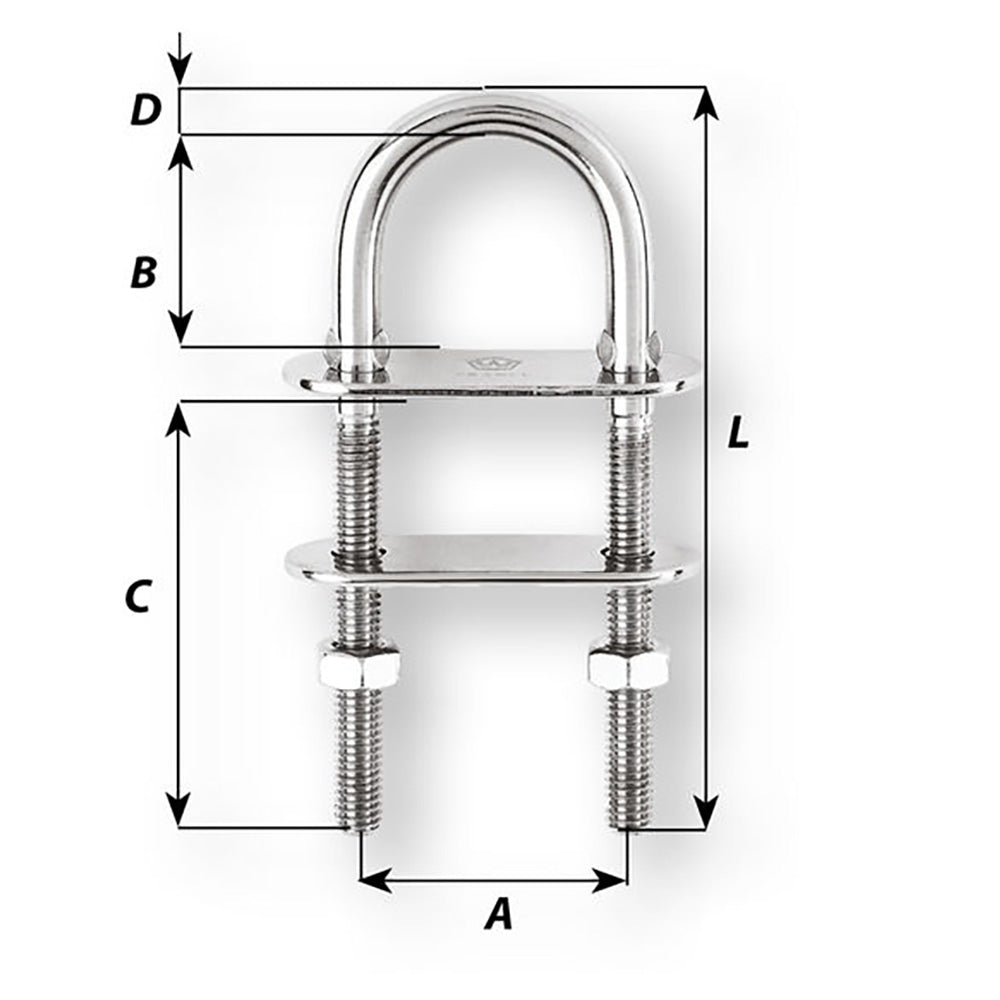

Dimensions:

  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 1 3/16" / (mm) 30
  • C: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 5/16" / (mm) 8
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 mm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.251 / (g) 114

Dimensions:

  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 1 3/16" / (mm) 30
  • C: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 5/16" / (mm) 8
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
