Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16
Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16
Wichard Marine

Wichard Self-Locking Twisted Shackle - Diameter 8mm - 5/16" [01224]

SKU: C-93101
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"Features:Self-locking twisted shackle forged in grade 316L stainless steelThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsApplications:Perfect for application where a… Full details ↓

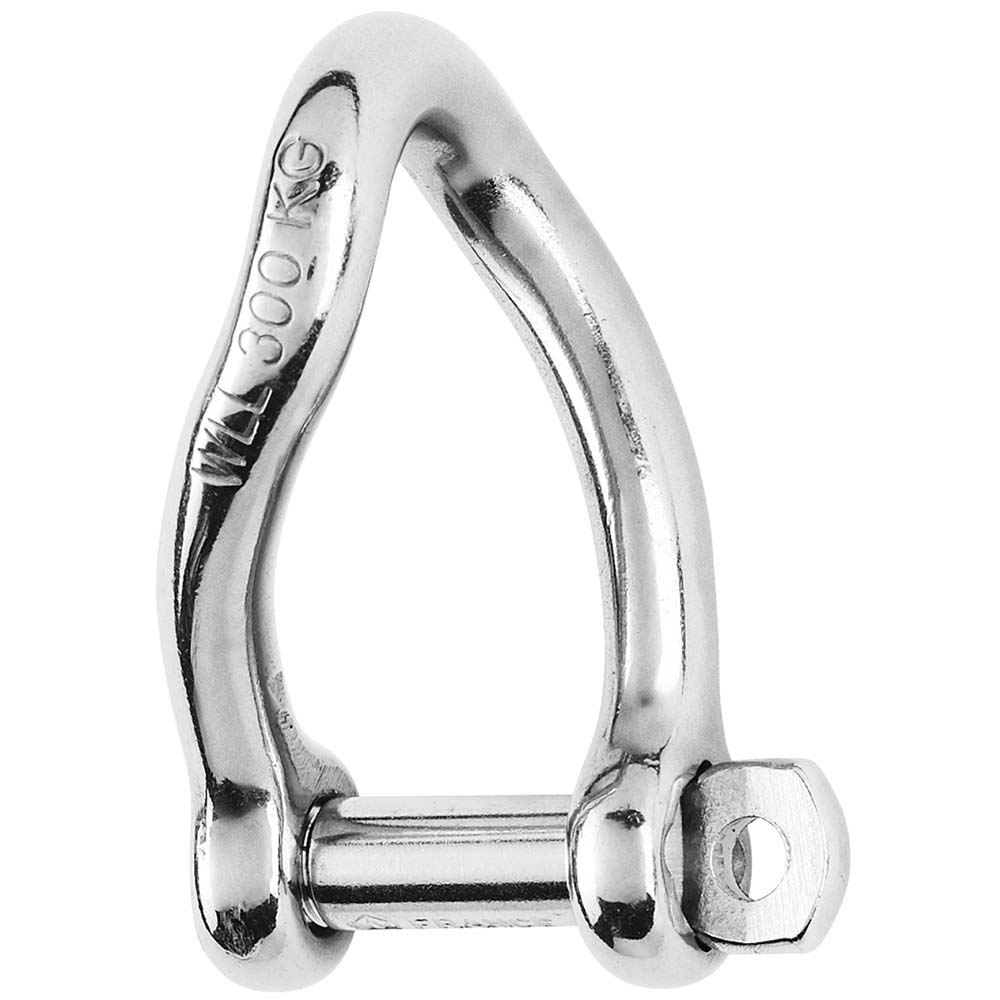

Self-Locking Twisted Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.148

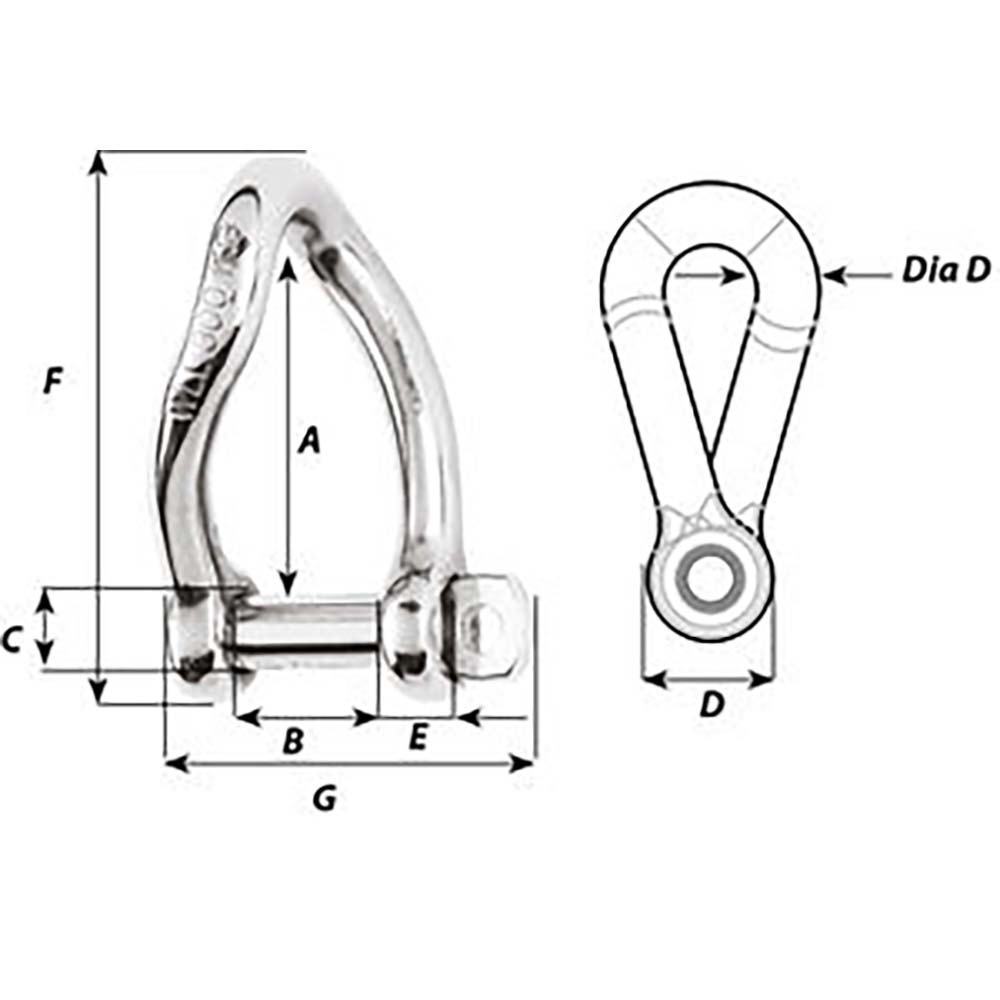

Dimensions (see 2nd image):

  • A (inch)1-37/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-23/64"
