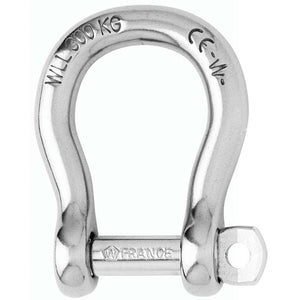

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16
Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16
Wichard Marine

Wichard Self-Locking Bow Shackle - Diameter 8mm - 5/16" [01244]

SKU: C-93105
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Self-Locking Bow Shackle - Diameter 8mm - 5/16"Features:Self-locking bow shackle forged in grade 316L stainless steelThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsWLL: only for industrial applications… Full details ↓

Self-Locking Bow Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.15

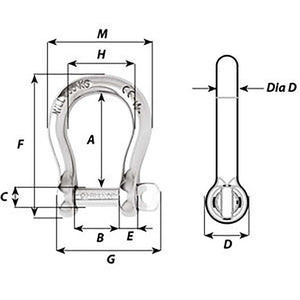

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • M (inch) 1-17/32"
