Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32
Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32
Wichard Marine

Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32" [01241]

SKU: C-93102
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Self-Locking Bow Shackle - Diameter 4mm - 5/32"Features:Self-locking bow shackle forged in grade 316L stainless steelThe pin is locked into one of the indentationsNo risks of loosening due to vibrationsOutstanding working and breaking loadsWLL: only for industrial applications… Full details ↓

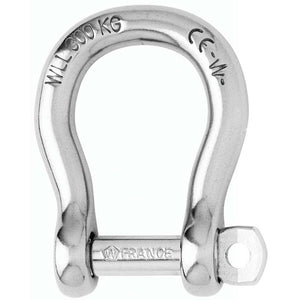

Self-Locking Bow Shackle - Diameter 4mm - 5/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 300
  • Breaking load (lb) 1540
  • Weight (lb) 0.02

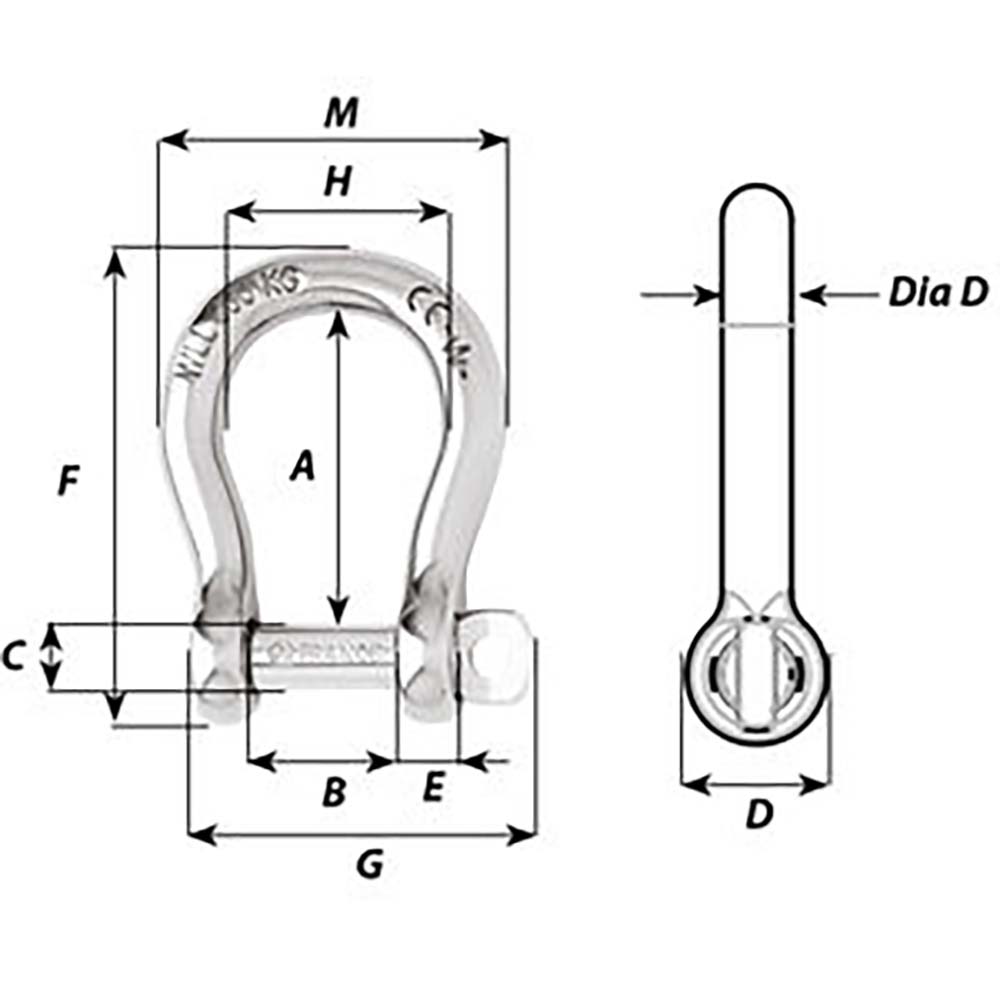

Dimensions (see 2nd image):

  • A (inch) 45/64"
  • B (inch) 5/16"
  • C (inch) 5/32"
  • D (inch) 5/16"
  • D diameter (inch) 5/32"
  • M (inch) 53/64"
