Wichard Self-Locking Bow Shackle - Diameter 10mm - 13/32
Wichard Self-Locking Bow Shackle - Diameter 10mm - 13/32
Wichard Marine

Wichard Self-Locking Bow Shackle - Diameter 10mm - 13/32" [01245]

SKU: C-93106
Save

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

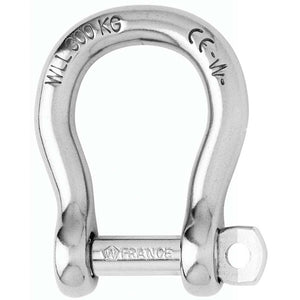

Self-Locking Bow Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 1890
  • Breaking load (lb) 9470
  • Weight (lb) 0.302

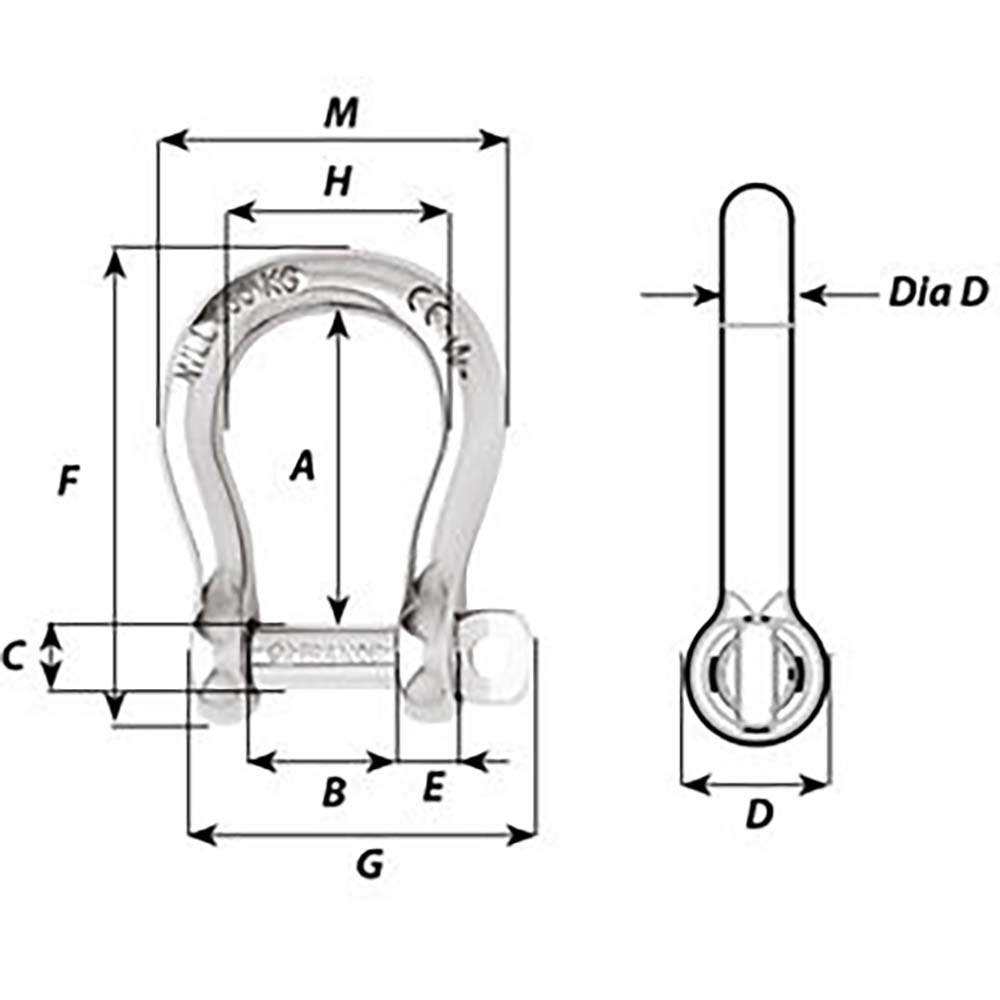

Dimensions:

  • A (inch) 1-27/32"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • M (inch) 2-3/64"

Self-Locking Bow Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 1890
  • Breaking load (lb) 9470
  • Weight (lb) 0.302

Dimensions:

  • A (inch) 1-27/32"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • M (inch) 2-3/64"
