Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed [6635]

SKU: C-99734

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

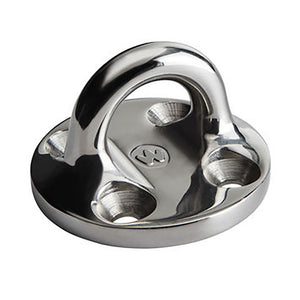

Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

This fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.

Applications:

  • Reefing blocks
  • Fastening points on the bowsprit
  • Blocks fastening

Specifications:

  • Materials: Duplex stainless steel grade
  • Weight: (lb) 0.331 / (g) 150
  • W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
  • W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
  • W.L 3 (0 degrees): (lb) 4299 / kg 1950
  • B.L 1 (90 degrees): (lb) 10031 / kg 4550
  • B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
  • B.L 3 (0 degrees): (lb) 8598 / kg 3900

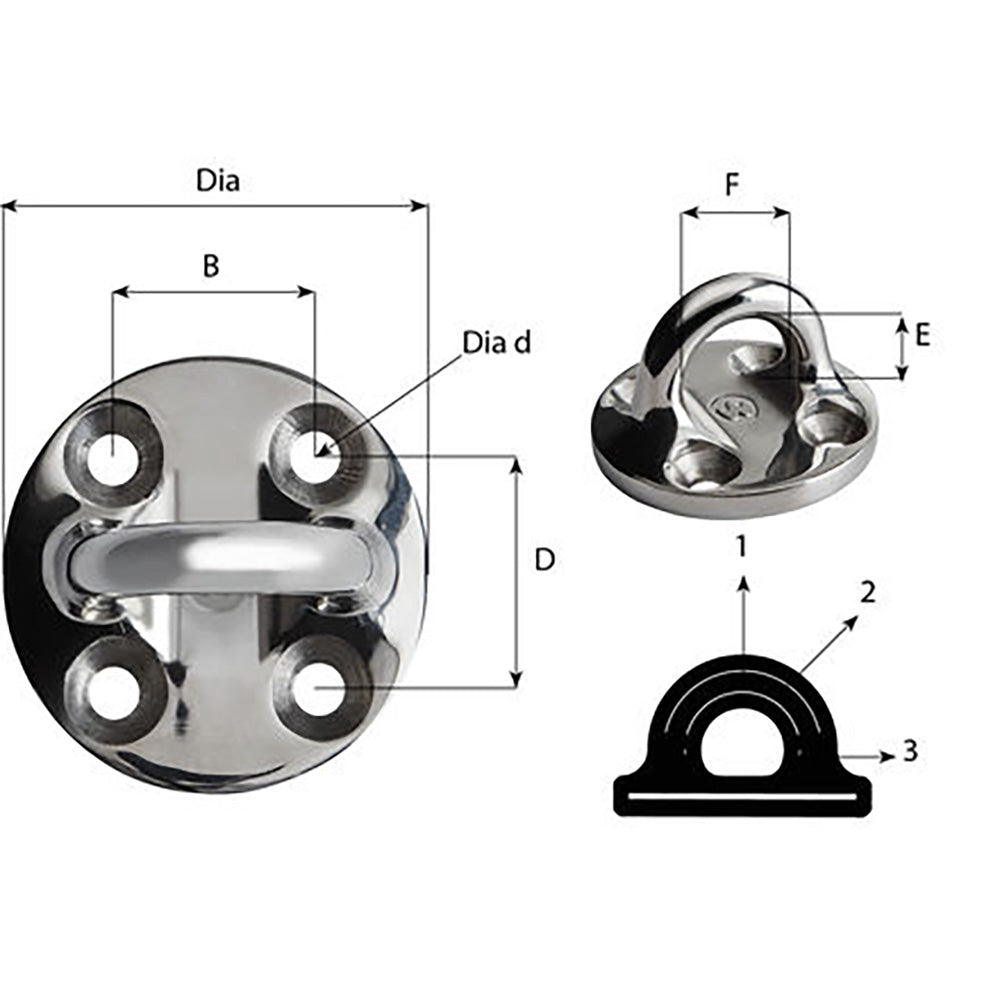

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 1/16" / (mm) 27
  • D: (inch) 1 3/16" / (mm) 30
  • E: (inch) 3/4" / (mm) 19
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
