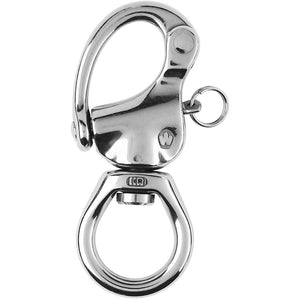

Wichard HR Snap Shackle - Large Bail - Length 140mm [02377]
Wichard HR Snap Shackle - Large Bail - Length 140mm [02377]
Wichard Marine

Wichard HR Snap Shackle - Large Bail - Length 140mm [02377]

SKU: C-93150
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

HR Snap Shackle - Large Bail - Length 140mmFeatures:HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eyeThe large eye allows attaching several ropesFree rotation of the snap shackle thanks to the swivel eyeThe plunger pin… Full details ↓

HR Snap Shackle - Large Bail - Length 140mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 5-33/64"
  • Working load (lb) 6170
  • Breaking load (lb) 16530
  • Weight (lb) 0.877

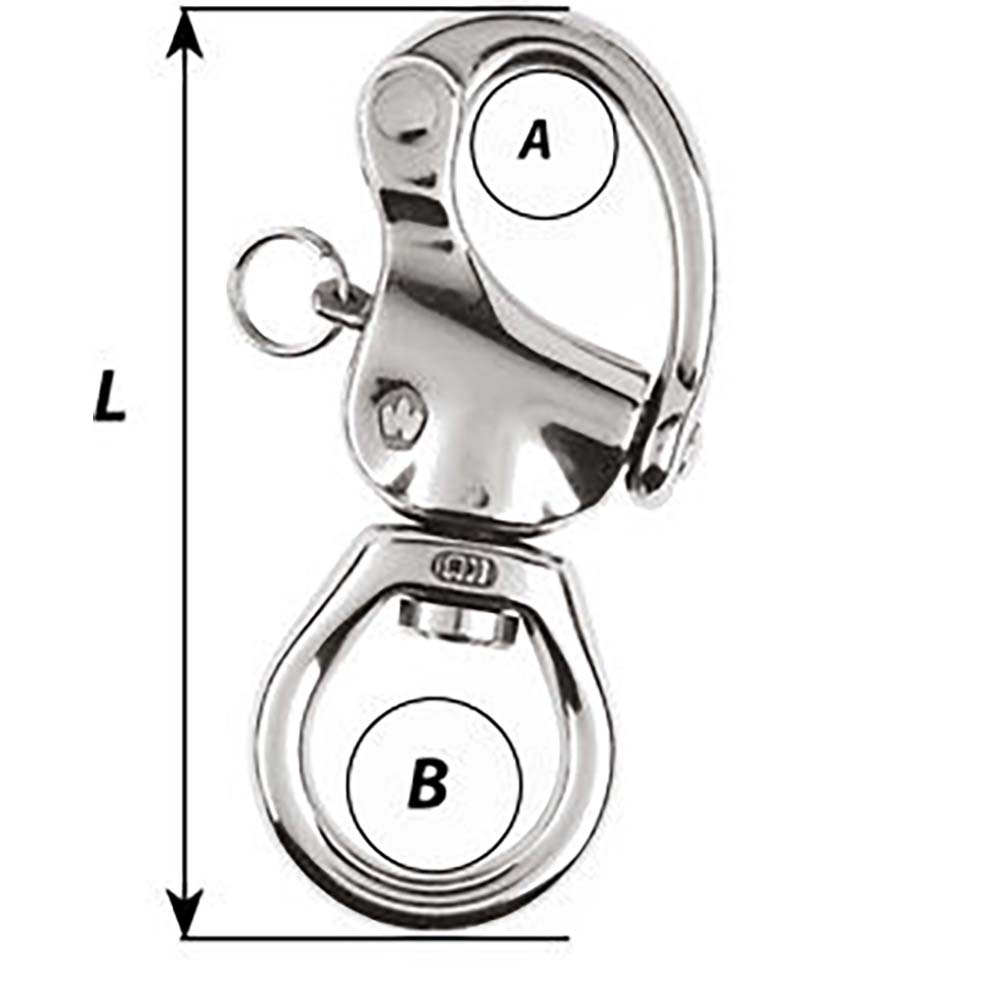

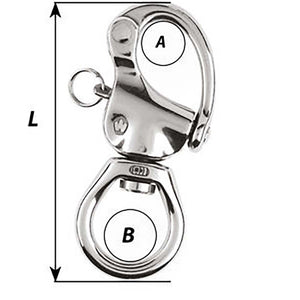

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 1-3/8"
