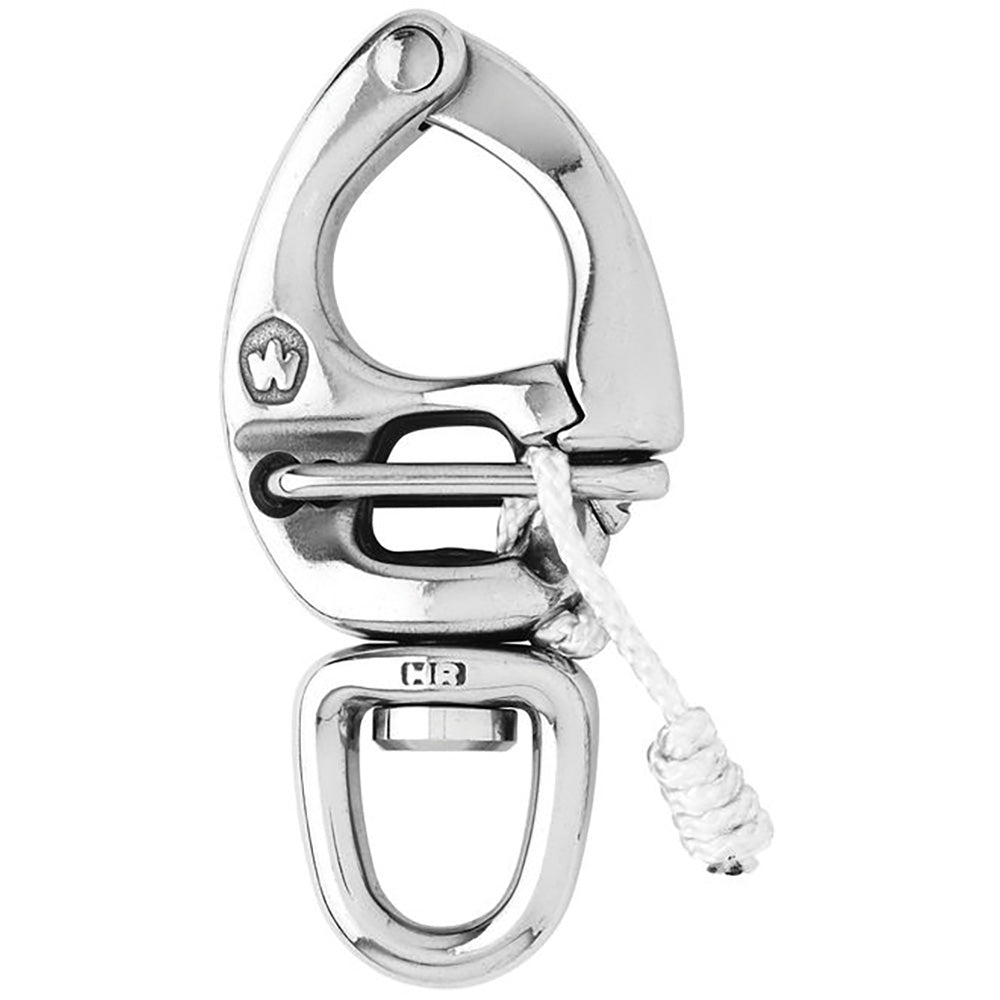

HR Quick Release Snap Shackle With Swivel Eye -150mm Length- 5-29/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11460 / (kg) 5200
  • Breaking load: (lb) 19840 / (kg) 9000
  • Weight: (lb) 1.208 / (g) 548

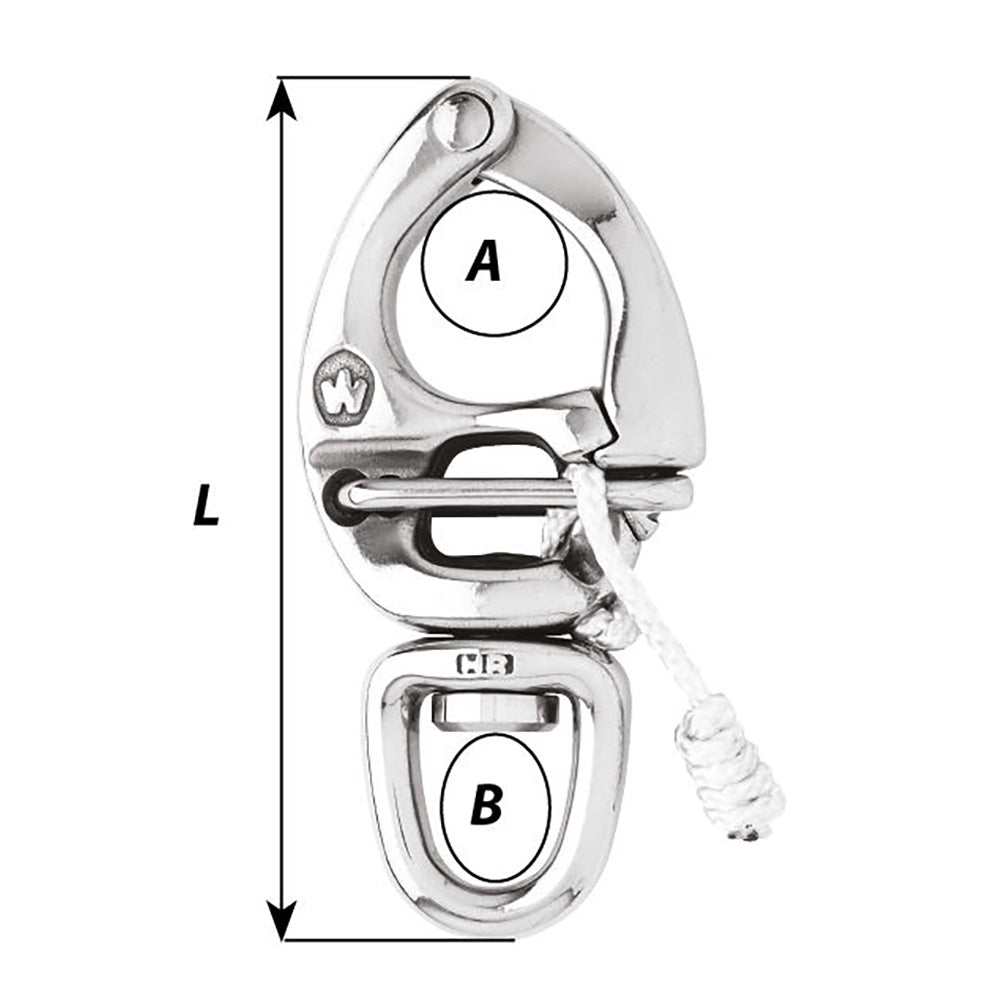

Dimensions:

  • A: (inch) 1 11/32" / (mm) 34
  • B: (inch) 15/16" / (mm) 24
  • Length: (inch) 5 29/32" / (mm) 150

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
