Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32
Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32
Wichard Marine

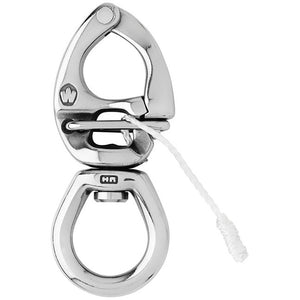

Wichard HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32" [02773]

SKU: C-97663
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"Features:HR forged (17.4 PH) quick-release snap shackle with large bailThe opening is made by pulling the lanyardPerfect to attach several lines (spinnaker sheets...)Outstanding working and breaking… Full details ↓

HR Quick Release Snap Shackle With Large Bail - 80mm Length - 3-5/32"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1940 / (kg) 880
  • Breaking load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.119 / (g) 54

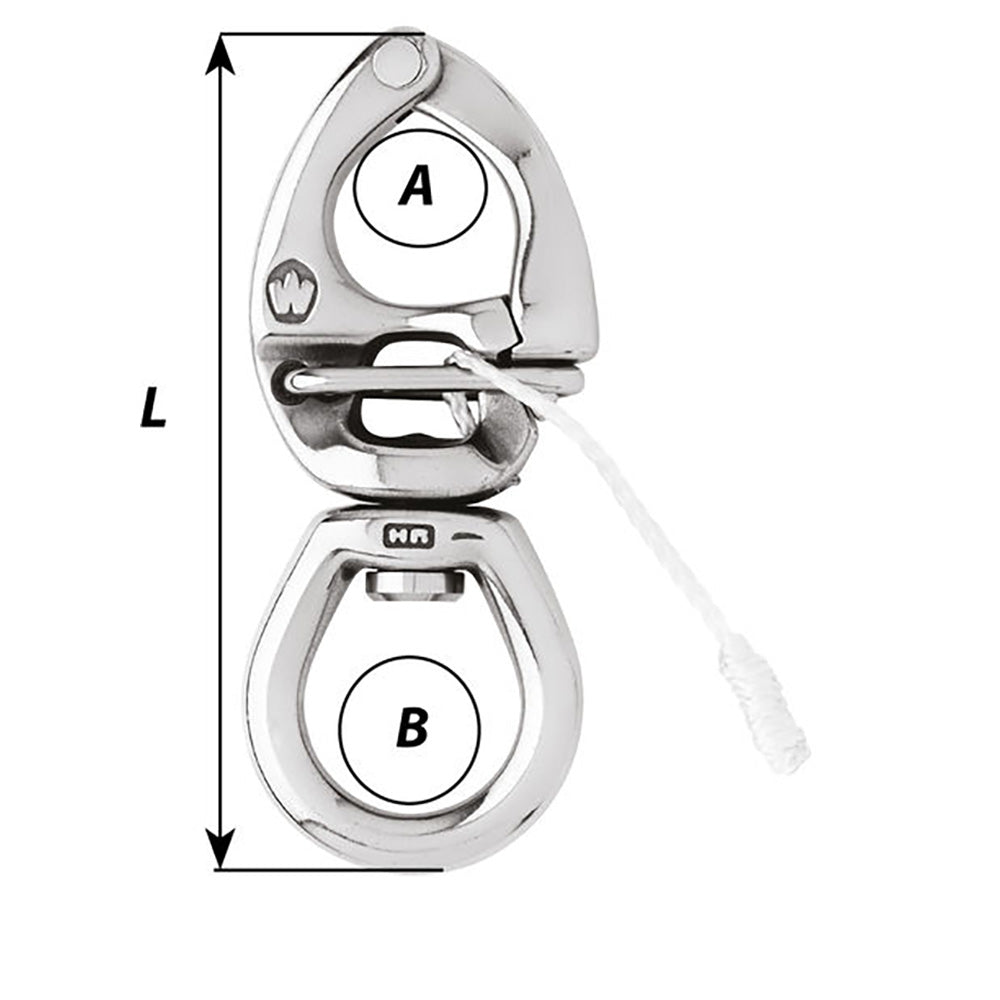

Dimensions:

  • A: (inch) 35/64" / (mm) 14
  • B: (inch) 3/4" / (mm) 19
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
