Wichard Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw [6646]

SKU: C-99737 In stock
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

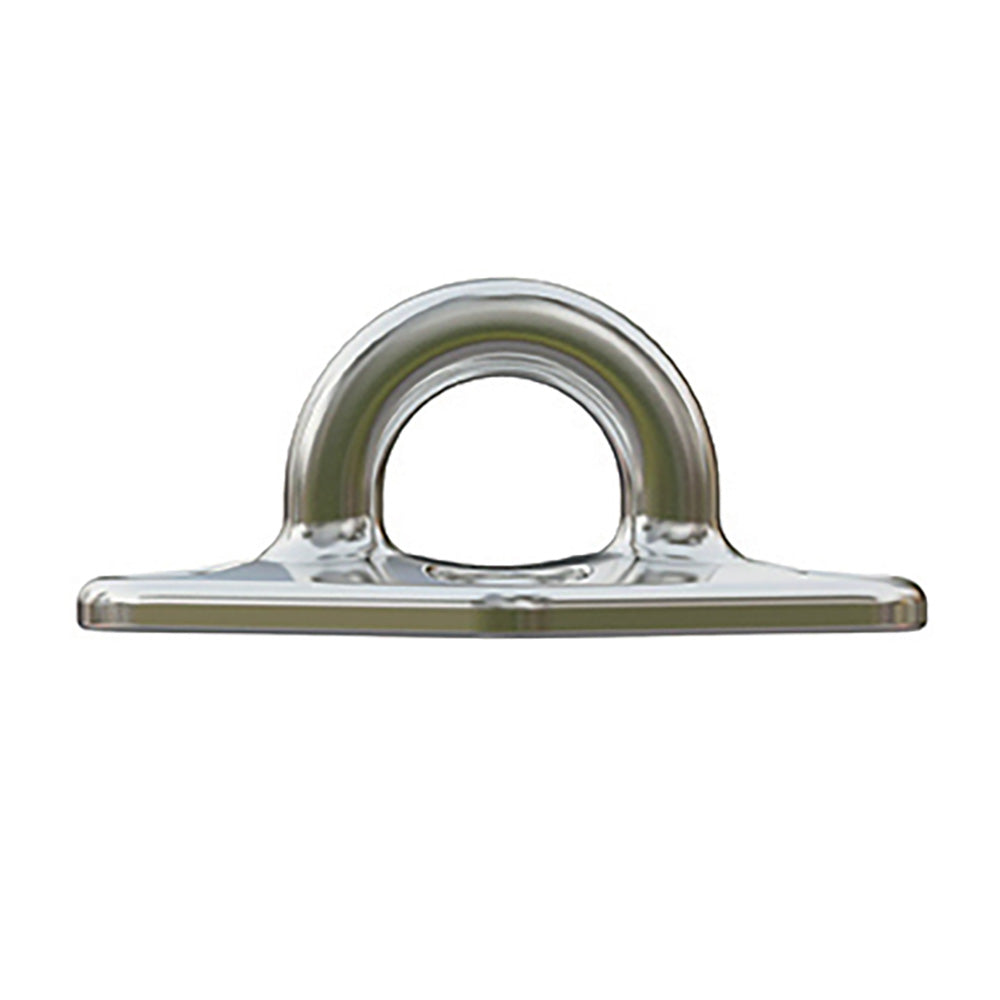

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M8 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 9259.4 / (kg) 4200
  • Breaking Load: (lb) 24691.7 / (kg) 11200
  • Weight: (lb) 0.551 / (g) 250
  • W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
  • W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
  • W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
  • B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
  • B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
  • B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

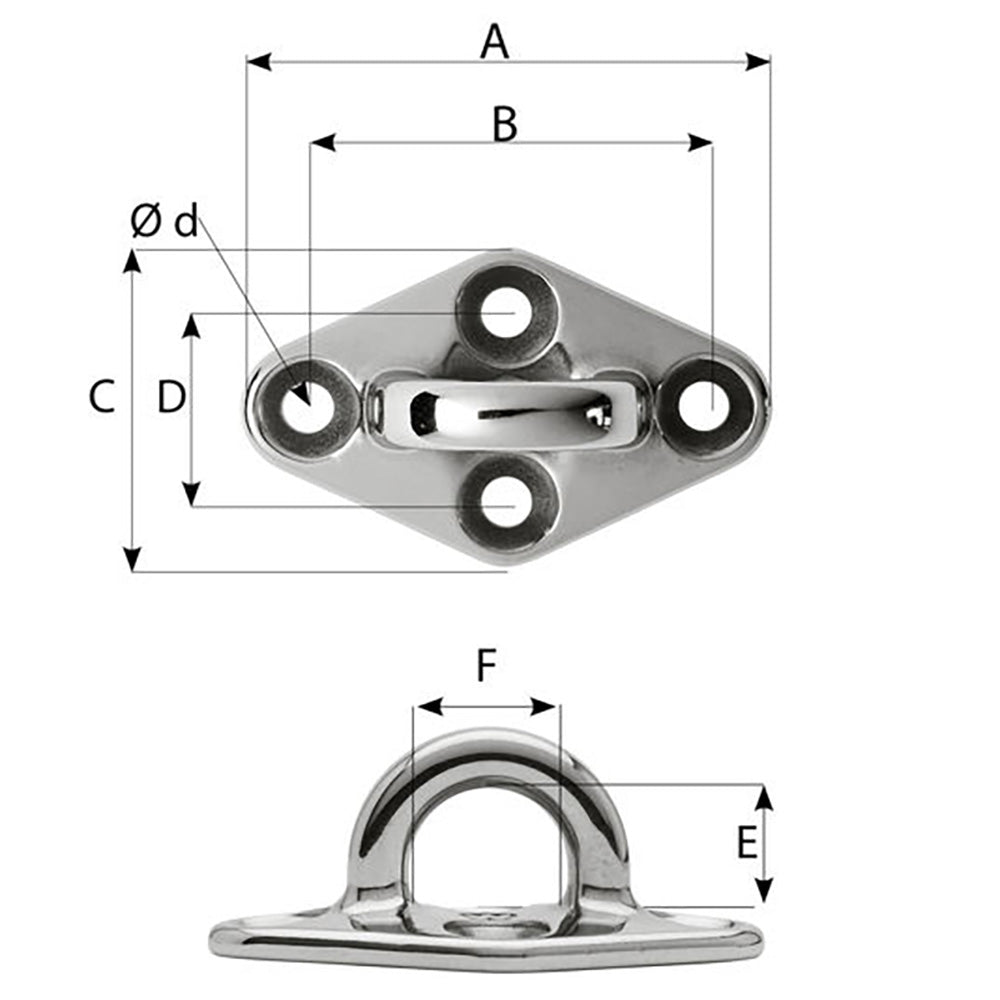

Dimensions:

  • A: (inch) 3 55/64" / (mm) 98
  • B: (inch) 2 7/8" / (mm) 73
  • C: (inch) 2 21/64" / (mm) 59
  • D: (inch) 1 3/8" / (mm) 35
  • E: (inch) 55/64" / (mm) 22
  • F: (inch) 1 1/16" / (mm) 27

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
