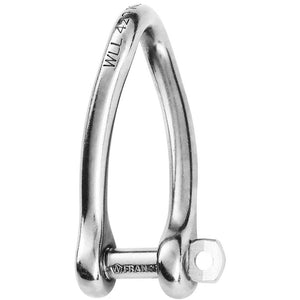

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety
  • Part #1424 is not suitable for lifting applications

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 8150
  • Weight (lb) 0.198

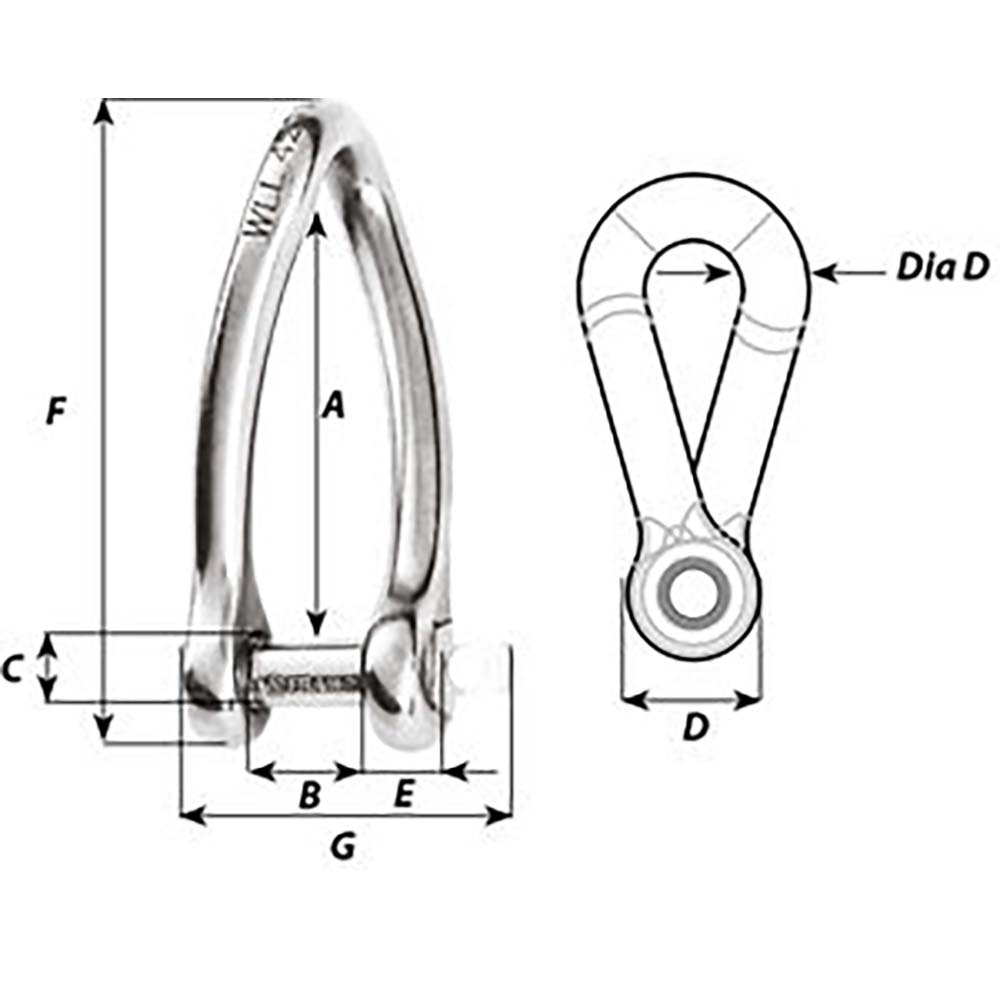

Dimensions (see 2nd image):

  • A (inch) 2-21/64"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 45/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • F (inch) 3-5/32"
  • G (inch) 1-21/32"
