Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32" [01411]

SKU: C-93115
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Captive Pin Long D Shackle - Diameter 4mm - 5/32"Features:Captive pin long "D" shackle forged in grade 316L stainless steelThe pin is connected to the body at all times even when openedThe pin is locked into one of… Full details ↓

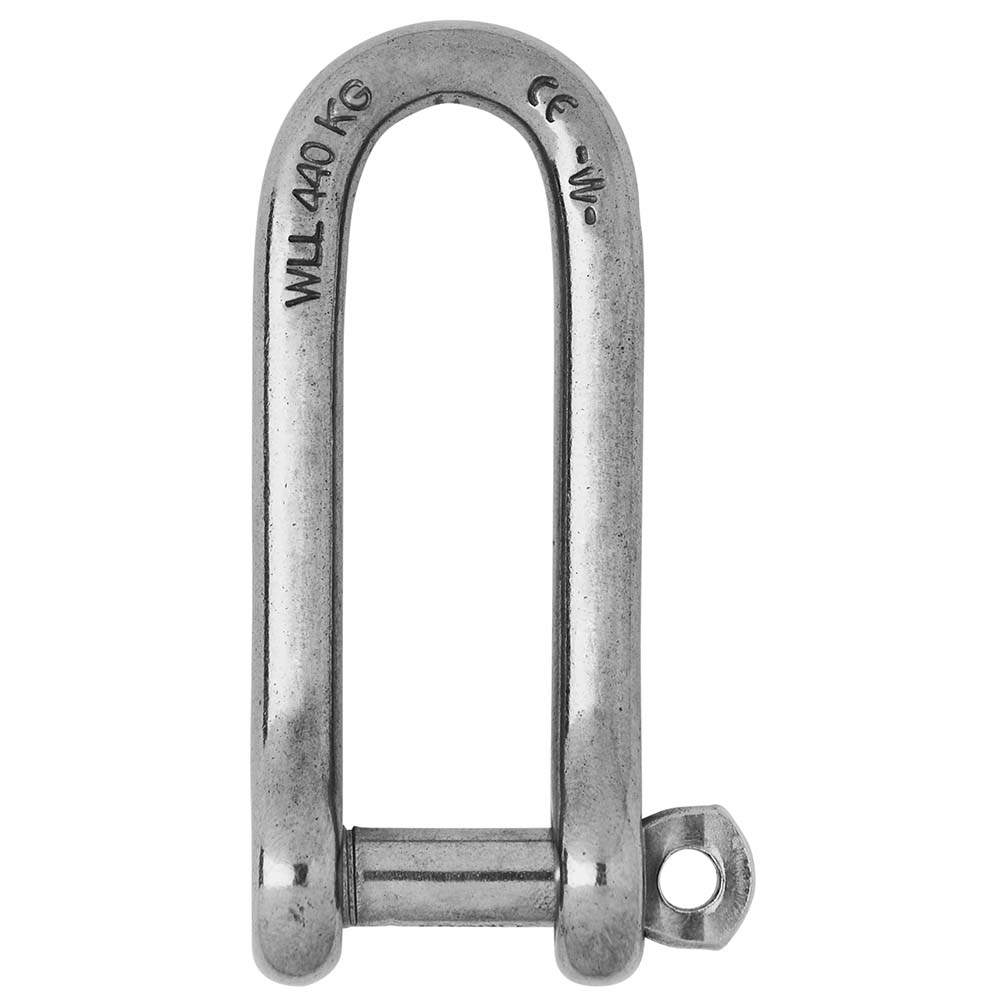

Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.026

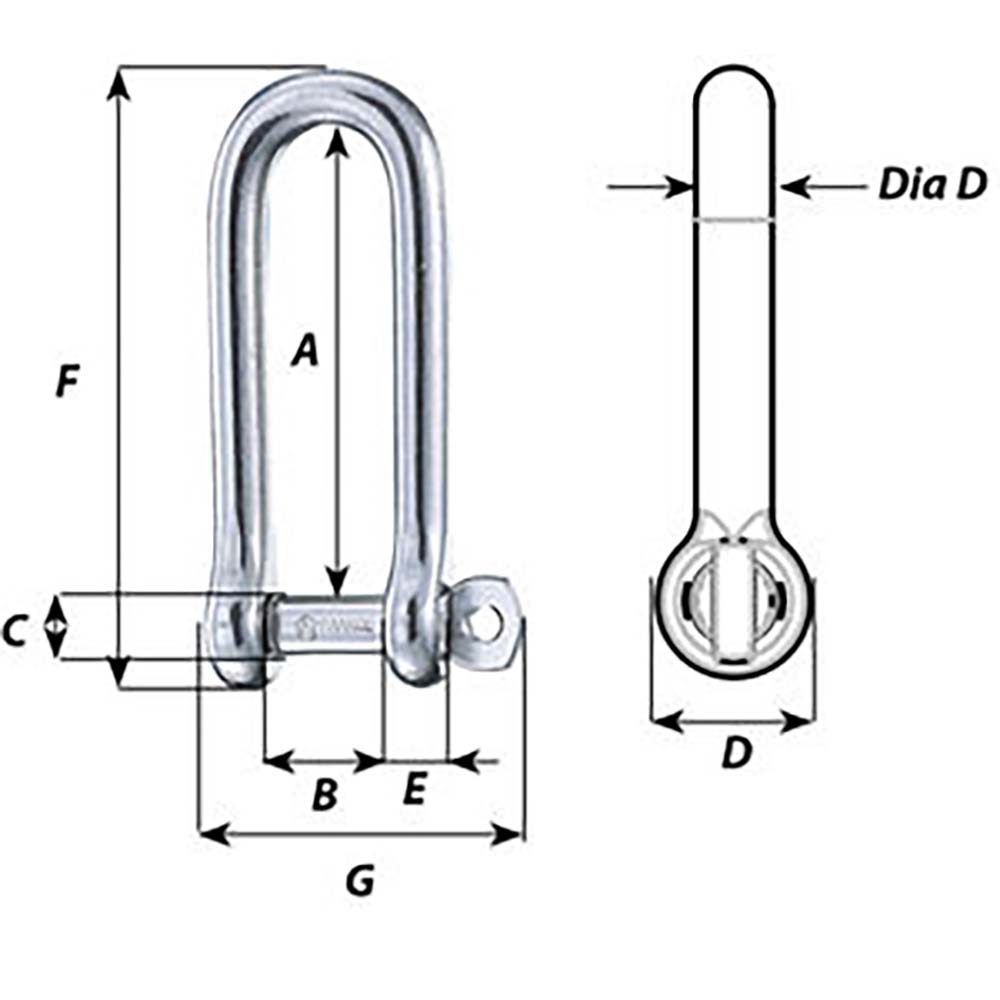

Dimensions (see 2nd image):

  • A (inch) 1-7/32"
  • B (inch) 5/16"
  • C (inch) 13/64"
  • D (inch) 23/64"
  • D diameter (inch) 5/32"
  • E (inch) 5/32"
  • F (inch) 1-39/64"
  • G (inch) 55/64"
