Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16" [01442]

SKU: C-93127
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Captive Pin Bow Shackle - Diameter 5mm - 3/16"Features:Captive pin bow shackle forged in grade 316L stainless steelThe pin is connected to the body at all times even when openedThe pin is locked into one of the indentationsNo… Full details ↓

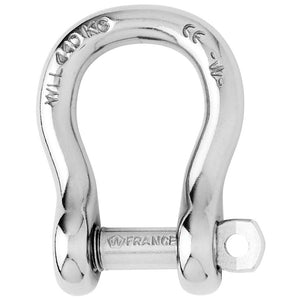

Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • WLL (lb) 660
  • Breaking load (lb) 3300
  • Weight (lb) 0.042

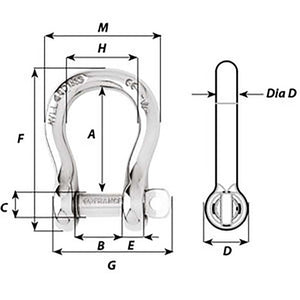

Dimensions (see 2nd image):

  • A (inch) 29/32"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • M (inch) 1-1/32"
