Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64
Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64
Wichard Marine

Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" [65451]

SKU: C-97737
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"Features: Fully drop-forged product with high-quality stainless steelOutstanding working and breaking loadsComplete water-tightness thanks to the resistant rubber collar (black color)Easy installation (no need to use a… Full details ↓

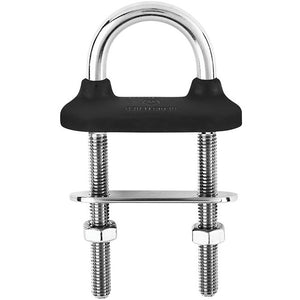

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Features:

  • Fully drop-forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • Complete water-tightness thanks to the resistant rubber collar (black color)
  • Easy installation (no need to use a waterproof sealant)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 36 nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Color: Black
  • Working load: (lb) 7930 / (kg) 3600
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.525 / (g) 238

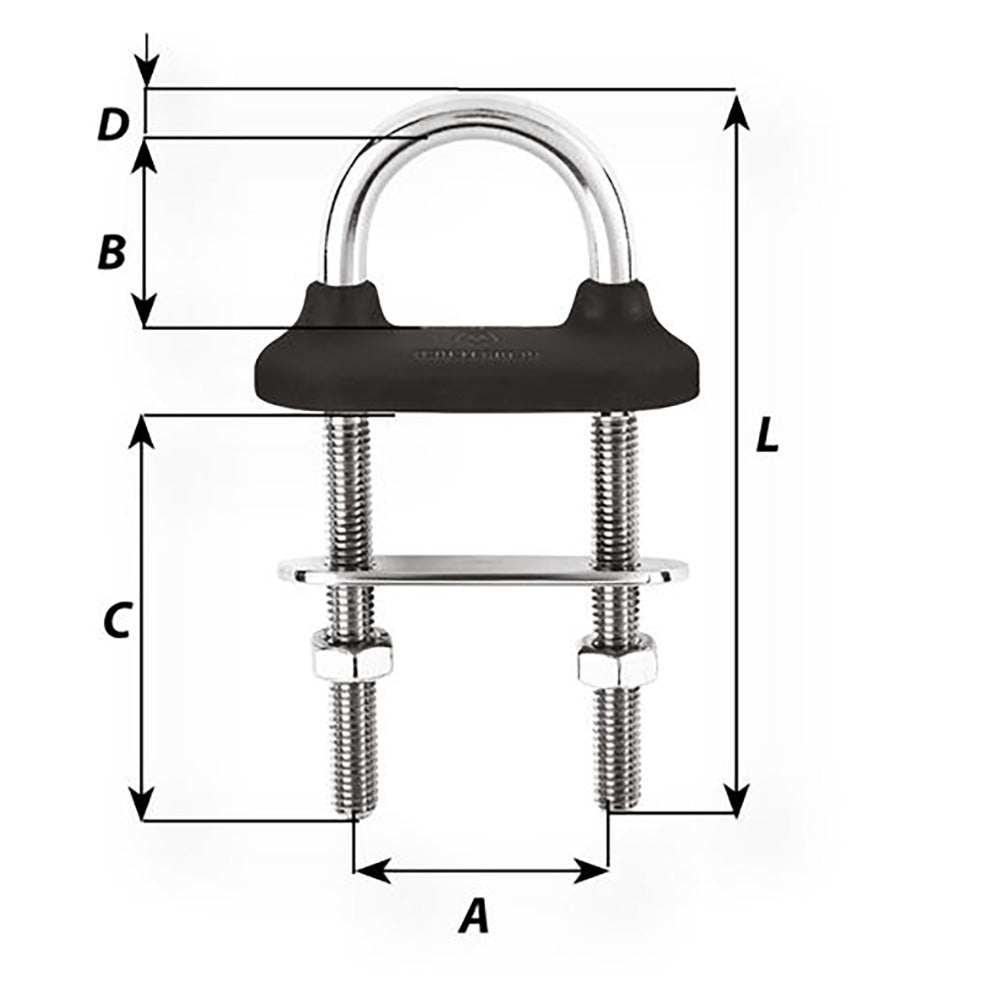

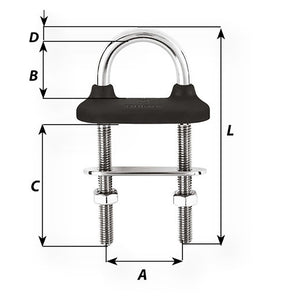

Dimensions:

  • Length: (inch) 4 21/64" / (mm) 110
  • A: (inch) 1 37/64" / (mm) 40
  • B: (inch) 1 1/32" / (mm) 26
  • C: (inch) 2 9/16" / (mm) 65
  • D diameter: (inch) 25/64" / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
