Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]
$298.53
Veratron
Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]
Free shippingOn most orders, by ground
30-day returnsOur mistake? We cover it
Not sure it fits?Ask us before you buy
Real people(727) 502-6735, replies in 24h
Pyrometer Sensor - 100-900°C/250-1650°FPyrometer sensor used in conjunction with LinkUp Gateway Module.Features:Plug-and-Play installation and configurationNMEA 2000® certifiedTechnical Specifications:Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - FuelInput Signal -… Full details ↓

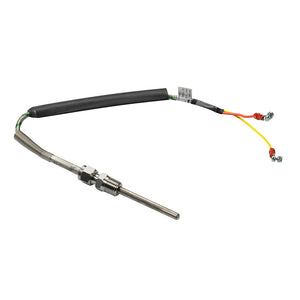

Pyrometer Sensor - 100-900°C/250-1650°F
Pyrometer sensor used in conjunction with LinkUp Gateway Module.
Features:
- Plug-and-Play installation and configuration
- NMEA 2000® certified
Technical Specifications:
- Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
- Input Signal - LIN bus
- Operating Voltage - 6 - 24 VDC
- Pyrometer Sensor
- Thermocoupler Element
- Measurement Range - 100-900°C/250-1650°F
- Communication - Analog
- Signal Output - 0 - 37 MV TC
- Sensor Connector - Ring Tongue
- Thread - R 1/4" Male
- Warning Contact - None
- Connector Type - Kabeloog
- Sender element length + thread (L) - Adjustable maximal 60 mm
- Sensor diameter - 6 mm
- Torque - 20 Nm
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Diameter (mm): N/A
- Diameter (Inches): N/A
- Color: Black
- Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
