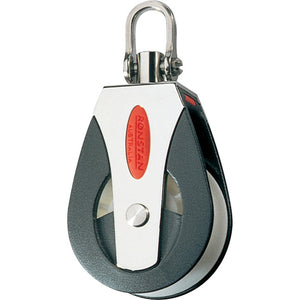

Series 50 All Purpose Block - Single - Universal Head

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

Features:

  • Exceptionally high working loads
  • Low maintenance, long service life
  • Self lubricating sheave
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines


Applications:
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10M(33')

Materials:
  • Nylatron® sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and U.V. resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø:t50mm(2")
Max. Rope Ø: 12mm(1/2")
Max. Pin Ø: 5mm(3/16")
M.W.L.:t750kg(1,650lbs)
B. L.:t1,500kg(3,310lbs)
Weight:t118g(4.1oz)
