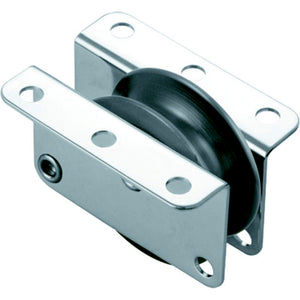

Ronstan Series 40 High Load Exit Box f/Single Rope & Wire [RF41712]
Ronstan

Ronstan Series 40 High Load Exit Box f/Single Rope & Wire [RF41712]

SKU: C-55209
Save
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

Series 40 High Load Exit Box for Single Rope or WirePlain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encounteredApplications:Ideal applications where lines (rope or wire) need to be… Full details ↓

Series 40 High Load Exit Box for Single Rope or Wire

Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered

Applications:

  • Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing


Materials:
  • Nylatron&regl sheave
  • Grade 316 Stainless Steel cheeks


Specifications:
Sheave Ø: 40.0mm(1-9/16")
Max. Rope Ø:10.0mm(3/8")
Max. Cable Ø: 5.0mm(3/16")
B.L.: 1,000kg(2,200lbs)

Specifications:

  • Color: Stainless
  • Box Dimensions: 2"H x 3"W x 4"L WT: 0.2 lbs
  • UPC: 9316800335121
