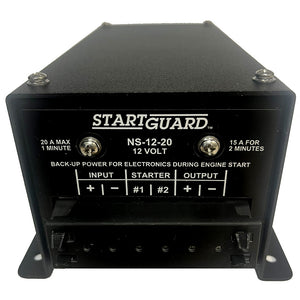

Newmar NS-12-20 StartGuard [NS-12-20]
Newmar Power

Newmar NS-12-20 StartGuard [NS-12-20]

SKU: C-102320
Out of stock at Akuna

Let us find it for you

This item is out of stock right now. Request a quote and we'll check availability and pricing, usually within 24 hours.

Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

NS-12-20 StartGuardThe abrupt DC system voltage drop that accompanies engine starting can cause micro-processor-driven electronics aboard vehicles or vessels to "dump" programmed memory. StartGuard solves these problems by providing supplemental power to sensitive electronics while the engines are… Full details ↓

NS-12-20 StartGuard

The abrupt DC system voltage drop that accompanies engine starting can cause micro-processor-driven electronics aboard vehicles or vessels to "dump" programmed memory. StartGuard solves these problems by providing supplemental power to sensitive electronics while the engines are cranking. Newmar's NS-12-20 StartGuard supplies backup power for electronics during engine start.

Mounting

Mount the StartGuard in any convenient location, such as under the dash or console, using the four mounting screws provided or #10 bolts.

Wiring

Input from the power source to the electronics must be routed through the StartGuard.

Specifications:

  • Input Voltage: 13.8-14.8 VDC nominal, 15.5 VDC Max
  • Relay Activation Input Voltage: 7-15 VDC
  • Output: 20 Amps Max
  • Battery: 12 VDC, 4.0 Amp/Hour, Sealed Rechargeable, 3-5 Year Life (Typical)
  • Backup Capacity (Fully Charged): 20 Amps for one minute/18 Amps for 2 minutes
  • Operating Temperature Range: 0-40 degrees Celsius
  • Winter Storage Temperature Range: -20 degrees to +40 degrees Celsius
  • Dimensions: 8.25" x 4.9" x 3.5"
  • Weight: 5.5 lbs
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
