Newmar BX-3 Junction Box [BX-3]
Newmar Power

Newmar BX-3 Junction Box [BX-3]

SKU: C-102343
In stock and ready to ship
Free shippingOn most orders, by ground 30-day returnsOur mistake? We cover it Not sure it fits?Ask us before you buy Real people(727) 502-6735, replies in 24h
Share
Questions about this part? Ask us →

BX-3 Junction BoxThis BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms. Features:IP rating 54 – “Splashproof”Rugged cast aluminum box with white enamel finishMetal box reduces electrical interferenceEasy wiring access through… Full details ↓

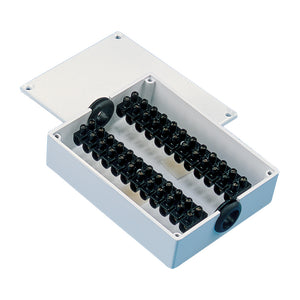

BX-3 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

  • IP rating 54 – “Splashproof”
  • Rugged cast aluminum box with white enamel finish
  • Metal box reduces electrical interference
  • Easy wiring access through multiple grommeted cable entries
  • Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box

Specifications:

  • Number of Connector Strips: 2
  • Positions per Strip: 11
  • Max Wire Gauge: 14
  • Max Amps (per position): 10
  • Cable Entries: 2
  • Cable Diameter: 0.59 in.
  • Box Size: 4.7 x 3.7 x 1.3 in.
  • Box Size: 11.9 x 9.4 x 3.3 cm

Specifications:

  • Type: Junction Box
  • Box Dimensions: 2"H x 6"W x 9"L WT: 0.7 lbs
