Marinco RY504-2-30 50A Female to 2-30A Male Reverse
Marinco

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable [RY504-2-30]

SKU: C-49257

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

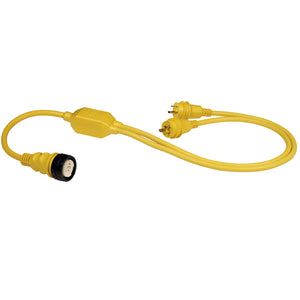

Reverse "Y" Adapter

The Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

Boat Side: Female Connector

  • 50A 125/250V
  • w/Sealing Collar System
  • Attaches to boat inlet or cordset


Dock Side: Male Plug
  • 2-30A 125V
  • Locking
  • Attaches to dockside receptacle or cordset

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Y-Adapter
  • Box Dimensions: 5"H x 12"W x 13"L WT: 7.4 lbs
  • UPC: 093344501357

Quick Guide (pdf)
