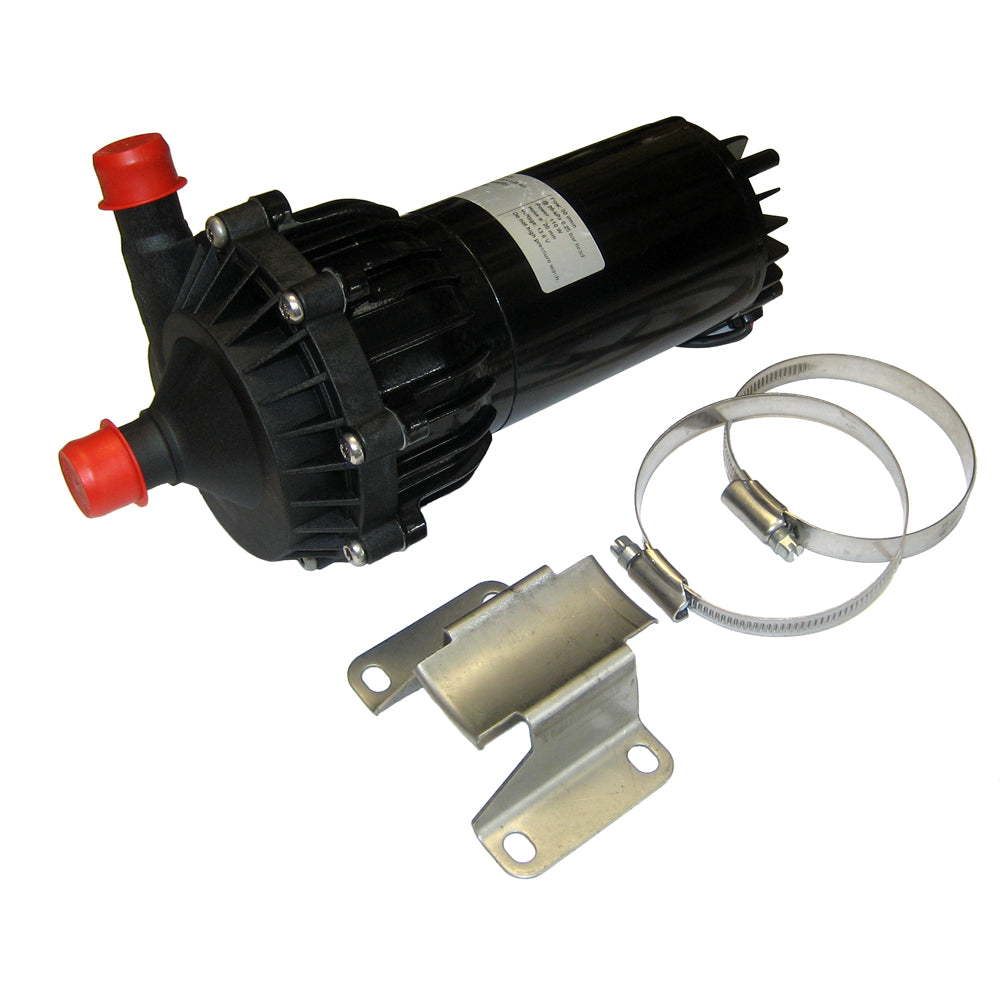

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

  • System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
  • Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
  • Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
  • Dry running: 30 minutes
  • Dimensions: 244mm L x 120mm W x 150mm H
  • Weight: 6.6lbs
  • Capacity: 17.2 GPM
  • Ports: 3/4"

Specifications:

  • Gallons Per Minute: 17.2 GPM
  • Volts: 12v
  • Box Dimensions: 6"H x 8"W x 11"L WT: 6.7 lbs
  • UPC: 7330717013172

CM90 Circulation Pump - 17.2GPM - 12V - 3/4" Outlet

CM90 circulation pumps are a line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation. Glass-fiber reinforced PPA body.

Specifications:

  • System Pressure:-0.3 to 3.0 bar; stationary max. 4.0 bar
  • Liquid: Water/glycol mixture; max. 60% glycol, fresh and salt water
  • Motor service life: More than 5,000 hours at nominal voltage, 10,000 start/stops. Interchangeable motor
  • Dry running: 30 minutes
  • Dimensions: 244mm L x 120mm W x 150mm H
  • Weight: 6.6lbs
  • Capacity: 17.2 GPM
  • Ports: 3/4"

Specifications:

  • Gallons Per Minute: 17.2 GPM
  • Volts: 12v
  • Box Dimensions: 6"H x 8"W x 11"L WT: 6.7 lbs
  • UPC: 7330717013172
