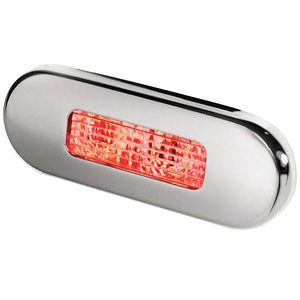

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Red LED - Stainless Steel Bezel [980869501]
Hella Marine

Hella Marine Surface Mount Oblong LED Courtesy Lamp - Red LED - Stainless Steel Bezel [980869501]

SKU: C-65436

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Surface Mount Oblong LED Courtesy Lamp - Red LED - Stainless Steel Bezel

Oblong LED lamps are offered as either dedicated step lamps or general courtesy illumination with equal vertical spread.

Step lamps carry engineered optics to direct light downwards at 30° safely illuminating deck and step tread surfaces without shining into the eyes.

Completely sealed and ultra durable, Hella Marine LED lamps may be installed on a vessels interior or exterior, wet or dry.

Polished 316 Stainless Steel bezels are included with each part number. Black and white plastic end caps are also included.

Specifications:

  • Lens Material: UV and enhanced impact resistant Grilamid
  • Rim Material: 316 stainless steel
  • Cable: Pre-wired with 120mm of marine cable
  • Operating Voltage: Multivolt 12 / 24V DC
  • Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
  • Degree of Protection: IP 67 - Completely Sealed
  • Mounting: Stainless steel screws included
  • Weight: 35g (including cable)
  • Approvals: CE

Specifications:

  • Bulb Type: LED
  • Voltage - Input Range (Volts): 12/24v
  • Housing: Stainless
  • LED Color: Red
  • Dimming: No
  • Box Dimensions: 2"H x 4"W x 6"L WT: 0.2 lbs
  • UPC: 9416325233985
