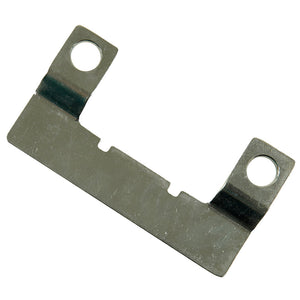

Egis XD Relay Cross-Over Bus Bar [8791]
Egis Mobile Electric

Egis XD Relay Cross-Over Bus Bar [8791]

SKU: C-103466
Regular price
In stock and ready to ship

XD Relay Cross-Over Bus BarThe XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect.  Linking… Full details ↓

XD Relay Cross-Over Bus Bar

The XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect.  Linking relays together creates compact installations and allows for robust circuit switching and battery management.

Features:

  • Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
  • Robust Protective Insulation ensures no accidental contact shorts between XD relays.

Specifications:

  • Continuous Current (Amps): 500
  • Max Voltage (VDC): 72
  • Material: Tin-plated copper
  • Size (L x W): 90 x 47mm
  • Thickness: 2.8mm (1/8")
  • Terminal Stud Hole Size: 10.5mm (3/8”)
