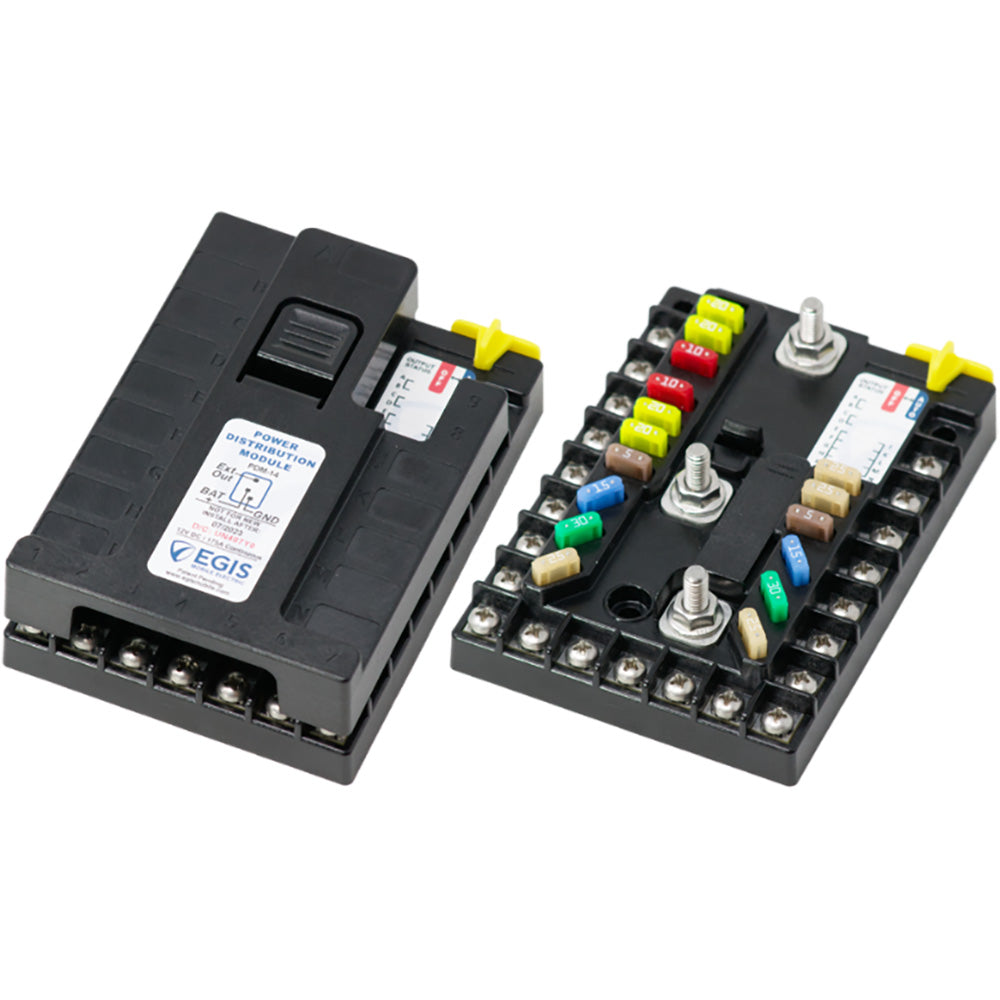

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch.  This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay.  Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:


  • For 12-volt systems, the allowed voltage range is 8-18 VDC
  • Total continuous output limit: 175 amps
  • Three load groups with a continuous output of 75-115 amps
  • Optional time  delay 0-10 hrs
  • Optional low voltage protection 11-12.2 volts
  • Offload current draw 1.3 mA

Quick Guide (pdf)

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch.  This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay.  Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:


  • For 12-volt systems, the allowed voltage range is 8-18 VDC
  • Total continuous output limit: 175 amps
  • Three load groups with a continuous output of 75-115 amps
  • Optional time  delay 0-10 hrs
  • Optional low voltage protection 11-12.2 volts
  • Offload current draw 1.3 mA

Quick Guide (pdf)
