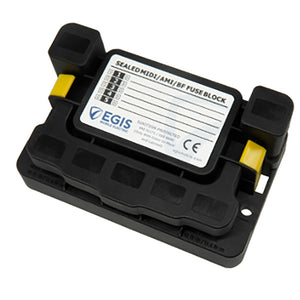

Egis MIDI 5x Fuse Block w/Sealed Cover [3908]
Egis Mobile Electric

Egis MIDI 5x Fuse Block w/Sealed Cover [3908]

SKU: C-107422

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

MIDI 5x Fuse Block with Sealed Cover

  • Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
  • Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
  • Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions

Features:

  • Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
  • Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
  • Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.

Specifications:

  • Total Continuous Current Amps: 500
  • Max MIDI?AMI Fuse Value (Amps): 200
  • Ingress Protection Rating: IP67
  • Ignition Protected (SEA J1171)? Yes
  • Output Stud Size: M6
  • Input Stud Size: M8

Specifications:

  • Fuse Type: MIDI/AMI
  • Type: Fuse Blocks

Brochure (pdf)

MIDI 5x Fuse Block with Sealed Cover

  • Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs
  • Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events
  • Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions

Features:

  • Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks.
  • Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.
  • Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
  • Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely.

Specifications:

  • Total Continuous Current Amps: 500
  • Max MIDI?AMI Fuse Value (Amps): 200
  • Ingress Protection Rating: IP67
  • Ignition Protected (SEA J1171)? Yes
  • Output Stud Size: M6
  • Input Stud Size: M8

Specifications:

  • Fuse Type: MIDI/AMI
  • Type: Fuse Blocks

Brochure (pdf)
