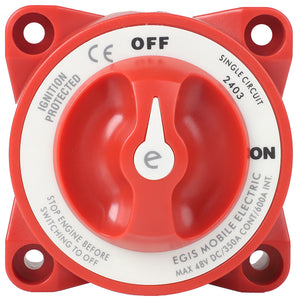

Egis E-Series 350A Battery Switch Off/On [2403]
Egis Mobile Electric

Egis E-Series 350A Battery Switch Off/On [2403]

SKU: C-110064

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

E-Series 350A Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps
  • Ignition Protection Rating: SAE J1171 / ISO 8846
  • Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
  • Cable Size to Meet Rating: 4/0 AWG

Quick Guide (pdf)
