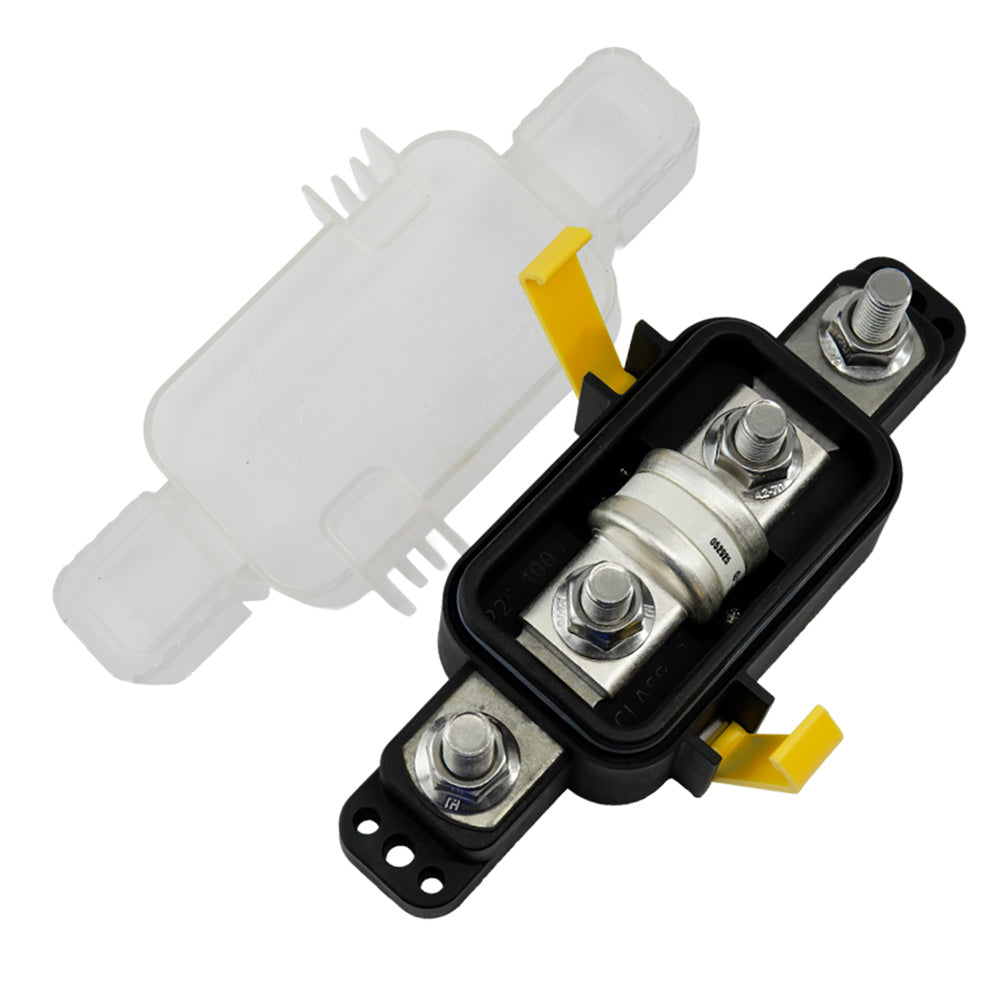

Egis Class T Fuse Block 225-400 A - Sealed [3912]
Egis Mobile Electric

Egis Class T Fuse Block 225-400 A - Sealed [3912]

SKU: C-113323

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

  • Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
  • Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

  • Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
  • Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
  • Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
  • 4 Year Warranty

Specifications:

  • Maximum Amperage: 225-400A
  • Max Voltage: 80 VDC
  • Ingress Protection Ratings: IP66, IP67, IP6K9K
  • Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
  • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
  • Busbar Material: Tin-Plated Copper

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

  • Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
  • Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

  • Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
  • Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability.
  • Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
  • 4 Year Warranty

Specifications:

  • Maximum Amperage: 225-400A
  • Max Voltage: 80 VDC
  • Ingress Protection Ratings: IP66, IP67, IP6K9K
  • Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6)
  • Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
  • Busbar Material: Tin-Plated Copper
