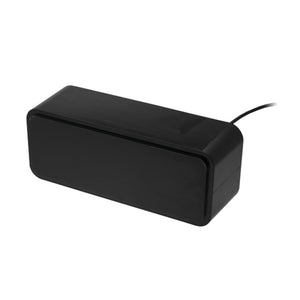

Airmar CM599LH 1-3kW Pocket Mounted Transducer - No Connector [CM599C-LH]
Airmar

Airmar CM599LH 1-3kW Pocket Mounted Transducer - No Connector [CM599C-LH]

SKU: C-101917

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

CM599LH 1-3kW Pocket Mounted Transducer - No Connector

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2 to 3 kW, low and high-frequency transducer. The Chirp-ready CM599LH gives the deep-water performance of the low frequency down to 3000 m (10000') plus the incredible resolution that the high-frequency band delivers.

The CM599LH is packed with a twenty-four-element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beamwidth.

Features:

  • Depth and fast-response water-temperature sensing
  • 2 to 3 kW of power for exceptional deep-water performance
  • Low frequency: 28 to 60 kHz
  • 23° to 9° port-starboard beamwidth
  • 11° to 5° fore-aft beamwidth
  • Maximum depth to 3048 m (10000')
  • High frequency: 130 to 210 kHz
  • 8° to 4° beamwidth
  • Maximum depth to 457 m (1500')
  • 112 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200  kHz plus everything else in the bandwidth
  • Resin housing with curved-edge design for wet-box installation
  • Can be installed in a cavity or welded tank
  • Also available as thru-hull external (R509LH) and in-hull (R599LH) mounts
  • Patented Xducer ID® technology

Specifications:

  • Frequency Band: Low-High
  • Functions: Depth, Temperature
  • Material: Urethane
  • Mounting Style: Tank, Cavity, Pocket/Keel Mount
  • Connector: Bare Wire
  • Display Connector: 0
  • Hull Material: Fiberglass or metal
  • Max Vessel LOA: 8 m (25') and above
  • High Frequency: 130-210 kHz
  • Common Use: Fishing, Commercial Fishing
  • Max Deadrise Angle: Any
  • Tilted Element: No
  • Low Frequency Beamwidth: 11°x23°-5°x9°
  • Low Frequency: 28-60 kHz
  • High Frequency Beamwidth: 8°-4°
  • Max Deadrise: Accommodates any deadrise angle based on custom installation
  • Power Rating: 2-3 kW
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Country of Origin: USA
  • Cable-Length: 15 m (49')
  • Weight: 14.2 kg (31.2 lb.)
  • Max Depth: Low frequency- 3048 m (10000'), High frequency- 457 m (1500')
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Brochure (pdf)
