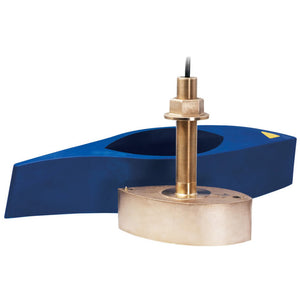

B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Features:

  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep to mid-depth performance
  • Low frequency: 42 to 65 kHz
  • 25° to 16° beamwidth
  • Maximum depth of 914 m (3000')
  • Medium frequency: 85 to 135 kHz
  • 16° to 11° beamwidth
  • Maximum depth of 457 m (1500')
  • 73 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
  • Bronze housing with High-performance Fairing for optimal high-speed performance
  • Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
  • Patented Xducer ID® technology

Specifications:

  • Power Rating: 1 kW
  • Max Deadrise Angle: 20°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: 8 m (25') and above
  • Usable Shaft Length: 121 mm (4.75")
  • Mounting Style: Thru-Hull with Fairing
  • Acoustic Window: Urethane
  • Common Use: Fishing, Commercial Fishing
  • Low Frequency: 42-65 kHz
  • Low Frequency Beamwidth: 25°-16°
  • Max Deadrise: Up to 20° with fairing
  • Max Depth: Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
  • Medium Frequency: 85-135 kHz
  • Medium Frequency Beamwidth: 16°-11°
  • Retractable housing: No
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Tilted Element: No
  • Weight: 7.3 kg (16 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
