Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]
Airmar

Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

SKU: C-107453

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

B117 50/200kHz 600W Mix & Match 0° Deadrise

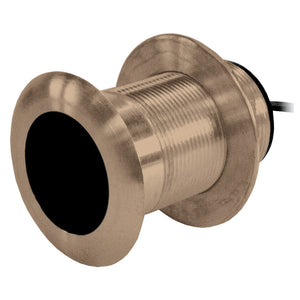

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.

Features:

  • Depth only or depth and fast-response water-temperature sensing
  • 600 W of power
  • Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Right-angle cable exit saves space and protects the transducer if stepped on
  • The included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

  • Power Rating: 600 W
  • Max Deadrise Angle: 12°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 51 mm (2")
  • Acoustic Window: Urethane
  • Common Use: Leisure/Yachting, Fishing
  • Conventional Beam: 45°/12°
  • Max Deadrise: Best performance through 7°. Accommodates up to 12°
  • Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
  • Mounting Style: Low Profile Thru-Hull
  • Retractable housing: No
  • Single or Dual Frequency: Conventional Dual Frequency
  • Weight: 0.9 kg (2 lbs.)

Specifications:

  • Chirp: No
  • Imagining: Standard
  • Mounting Style: Thru-Hull
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
  • UPC: 801769000238

B117 50/200kHz 600W Mix & Match 0° Deadrise

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.

Features:

  • Depth only or depth and fast-response water-temperature sensing
  • 600 W of power
  • Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Right-angle cable exit saves space and protects the transducer if stepped on
  • The included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

  • Power Rating: 600 W
  • Max Deadrise Angle: 12°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 51 mm (2")
  • Acoustic Window: Urethane
  • Common Use: Leisure/Yachting, Fishing
  • Conventional Beam: 45°/12°
  • Max Deadrise: Best performance through 7°. Accommodates up to 12°
  • Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
  • Mounting Style: Low Profile Thru-Hull
  • Retractable housing: No
  • Single or Dual Frequency: Conventional Dual Frequency
  • Weight: 0.9 kg (2 lbs.)

Specifications:

  • Chirp: No
  • Imagining: Standard
  • Mounting Style: Thru-Hull
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
  • UPC: 801769000238
