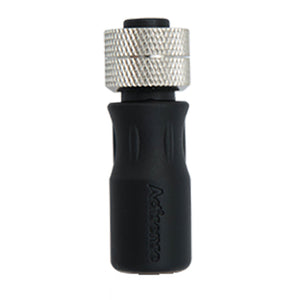

Actisense NMEA2000 Micro Terminator - Female [A2K-TER-F]
Actisense

Actisense NMEA2000 Micro Terminator - Female [A2K-TER-F]

SKU: C-111805

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

NMEA2000 Micro Terminator - Female

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

  • Rated Voltage (power pair) - 60VDC
  • Rated Current - 4A
  • Internal Termination Resistors - 120 Ω ± 1% 500mW

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, Black
  • Housing - PVC, black
  • Weight - 15g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C

Specifications:

  • Cable Length (Feet): N/A
  • Connection Gender: Female
  • Data Interface: NMEA 2000

Owner's Manual (pdf)
Brochure (pdf)
