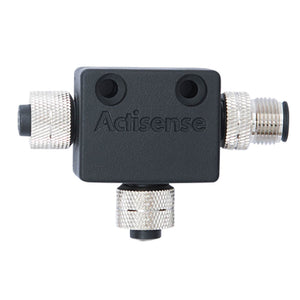

Actisense NMEA2000 Micro T Connector [A2K-T-MFF]
Actisense

Actisense NMEA2000 Micro T Connector [A2K-T-MFF]

SKU: C-108174

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

NMEA2000 Micro T Connector

Quality-engineered connectors are shaped to allow easy and secure connections.

Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.

The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

  • Rated Current - 4A
  • Rated Voltage - 60VDC
  • Male Contact - Brass, gold-plated
  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass filled), black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Weight - 47g
  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +70°C
  • Storage Temperature - -40°C to +85°C

Specifications:

  • Cable Length (Feet): N/A
  • Connection Gender: Male-Female
  • Data Interface: NMEA 2000

Owner's Manual (pdf)
Brochure (pdf)
