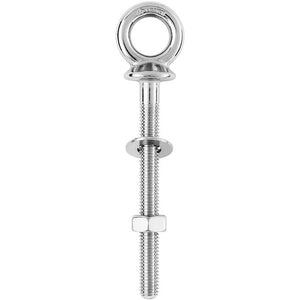

Eye Bolt - M12 x 175mm - Length 120mm

Features:

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 7710 / (kg) 3500
  • Weight: (lb) 0.359 / (g) 163

Dimensions:

  • A: (mm) M12 x 175
  • B: (inch) 45/64" / (mm) 18
  • C: (inch) 1 39/64" / (mm) 41
  • D: (inch) 5/16" / (mm) 8
  • E: (inch) 1 7/64" / (mm) 28
  • F: (inch) 4 23/32" / (mm) 120
  • G: (inch) 4 9/64" / (mm) 105

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
