Veratron ViewLine 52mm (2-1/16") Rudder Angle Indicator - 40 Port/Starboard [A2C59514230]

SKU: C-86169

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

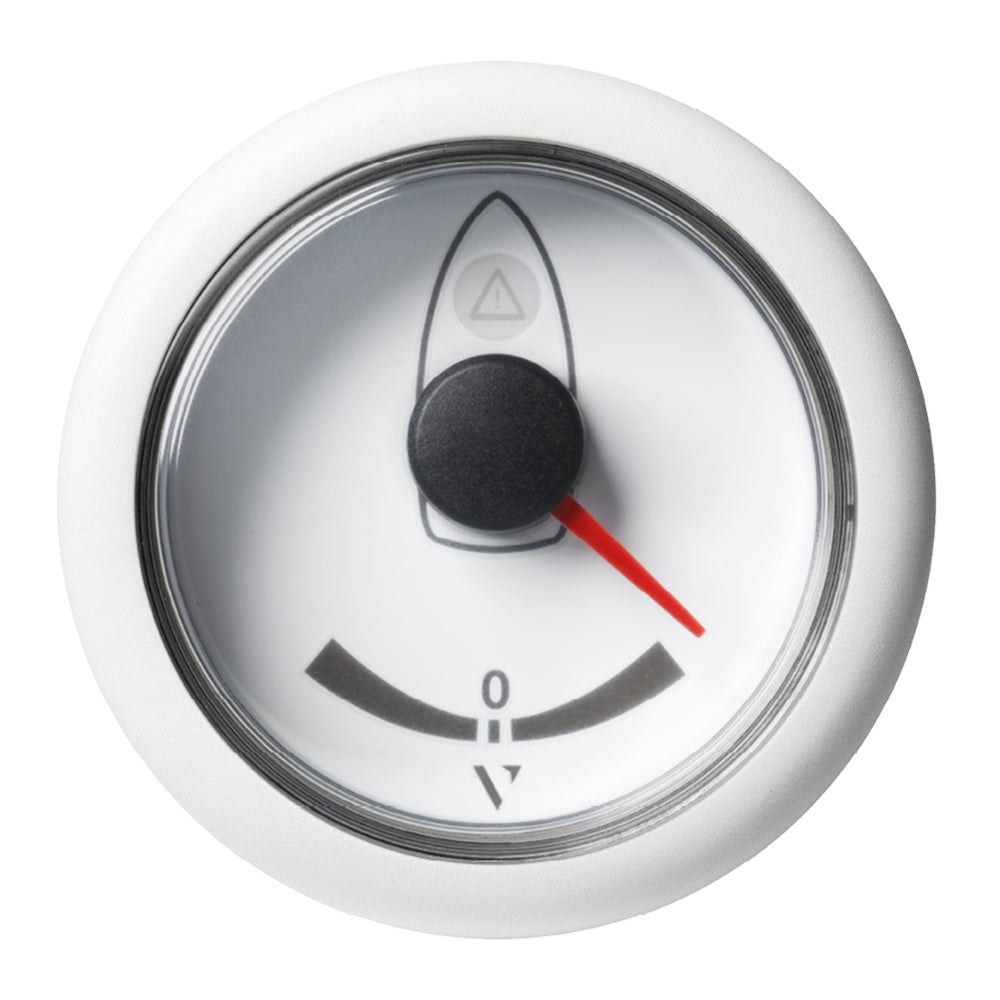

ViewLine 52mm (2-1/16") Rudder Angle Indicator - 40° Port/Starboard

The ViewLine rudder angle gauge for wheel-controlled yachts displays the current rudder position at all times. An important cockpit gauge for accident-free maneuvers in narrow waterways.

Features:

  • 8 pole Tyco/Hirschmann bush housing
  • Operating voltage 8–32 V
  • Current consumption <150 mA • Anti-fog double lens
  • Front side protection rating IP67
  • 52 installation diameter
  • 50 mm installation depth

*Sold as an Individual Piece

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Voltage - Input Range (Volts): 8-32v
  • Series: ViewLine
  • Gauge Type: Rudder Angle
  • Gauge Size: 3-3/8"
  • Box Set: No
  • Box Dimensions: 4"H x 6"W x 6"L WT: 0.18 lbs
  • UPC: 7640178723238

Owner's Manual (pdf)
Brochure (pdf)
