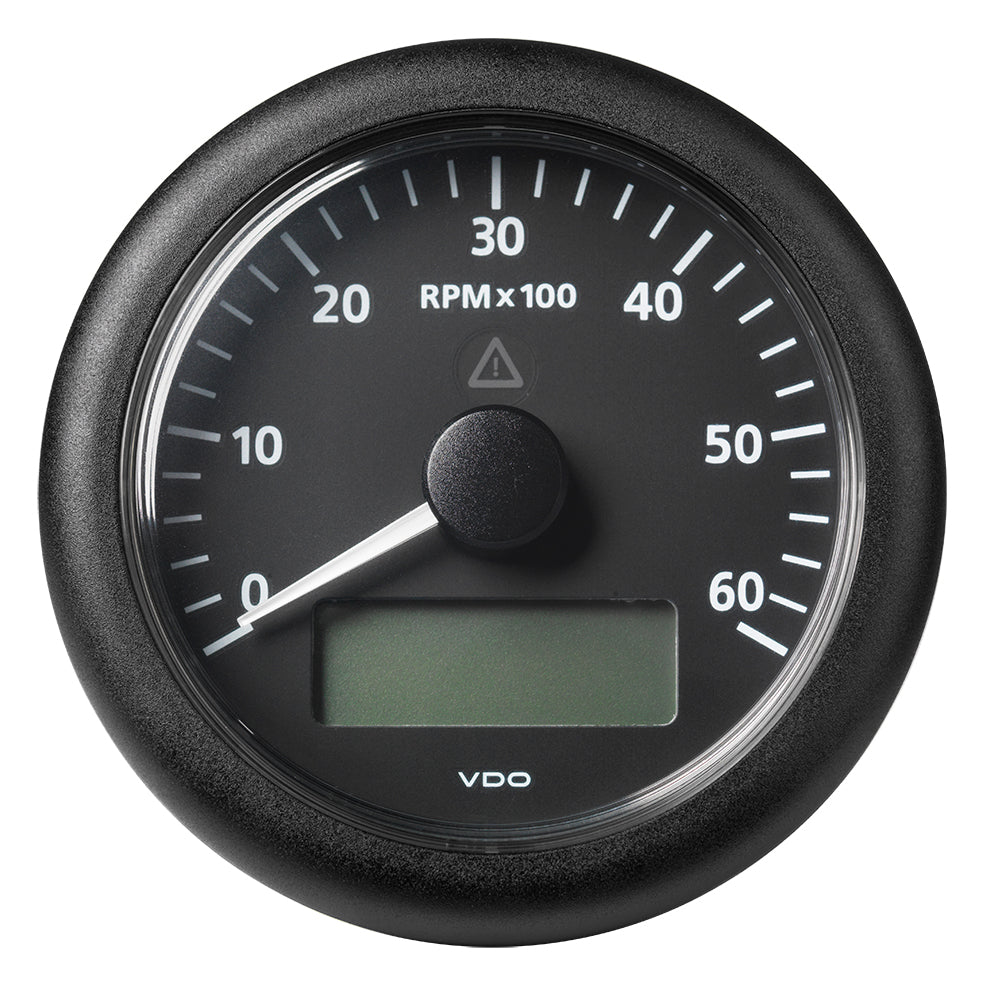

Veratron 3-3/8" (85MM) ViewLine Tachometer w/Multi-Function Display - 0 to 6000 RPM - Black Dial Bezel [A2C59512393]

SKU: C-81572
Save

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

3-3/8" (85MM) ViewLine Tachometer with Multi-Function Display - 0 to 6000 RPM - Black Dial & Bezel

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus).

One LED warning light is integrated as a standard.

Specifications:

  • Various sensor inputs (W, Ind, Hall, Generator)
  • Output for acoustic alert (option)
  • LCD size - 37 mm x 11 mm
  • 8 and 14 pole Tyco / Hirschmann bush housing • Operating voltage 8 – 32 V
  • Accuracy +/- 2.5 % of full scale reading
  • < 175 mA current consumption with an LED warning  light as standard
  • Number of pulses programmable via dip switch  or PC software (ViewLine programming tool)
  •  Anti-fog double lens
  •  Protection rating front IP67, rear IP52
  •  85 mm installation diameter
  •  50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Reverse polarity protection
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Series: ViewLine
  • Gauge Type: Multifunction
  • Gauge Size: 3-3/8"
  • Box Set: No
  • Box Dimensions: 4"H x 7"W x 8"L WT: 0.45 lbs
  • UPC: 7640178722163

3-3/8" (85MM) ViewLine Tachometer with Multi-Function Display - 0 to 6000 RPM - Black Dial & Bezel

The ViewLine Tachometer is available with or without operating hours counter (digital display) and can be connected to conventional marine engines (no data bus).

One LED warning light is integrated as a standard.

Specifications:

  • Various sensor inputs (W, Ind, Hall, Generator)
  • Output for acoustic alert (option)
  • LCD size - 37 mm x 11 mm
  • 8 and 14 pole Tyco / Hirschmann bush housing • Operating voltage 8 – 32 V
  • Accuracy +/- 2.5 % of full scale reading
  • < 175 mA current consumption with an LED warning  light as standard
  • Number of pulses programmable via dip switch  or PC software (ViewLine programming tool)
  •  Anti-fog double lens
  •  Protection rating front IP67, rear IP52
  •  85 mm installation diameter
  •  50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Reverse polarity protection
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Series: ViewLine
  • Gauge Type: Multifunction
  • Gauge Size: 3-3/8"
  • Box Set: No
  • Box Dimensions: 4"H x 7"W x 8"L WT: 0.45 lbs
  • UPC: 7640178722163
