Veratron 3-3/8" (85MM) ViewLine Rudder Angle Indicator -45/+45 - 8 to 32V - Black Dial Bezel [A2C59512410]

SKU: C-81583 In stock
Sale price Regular price
Save
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

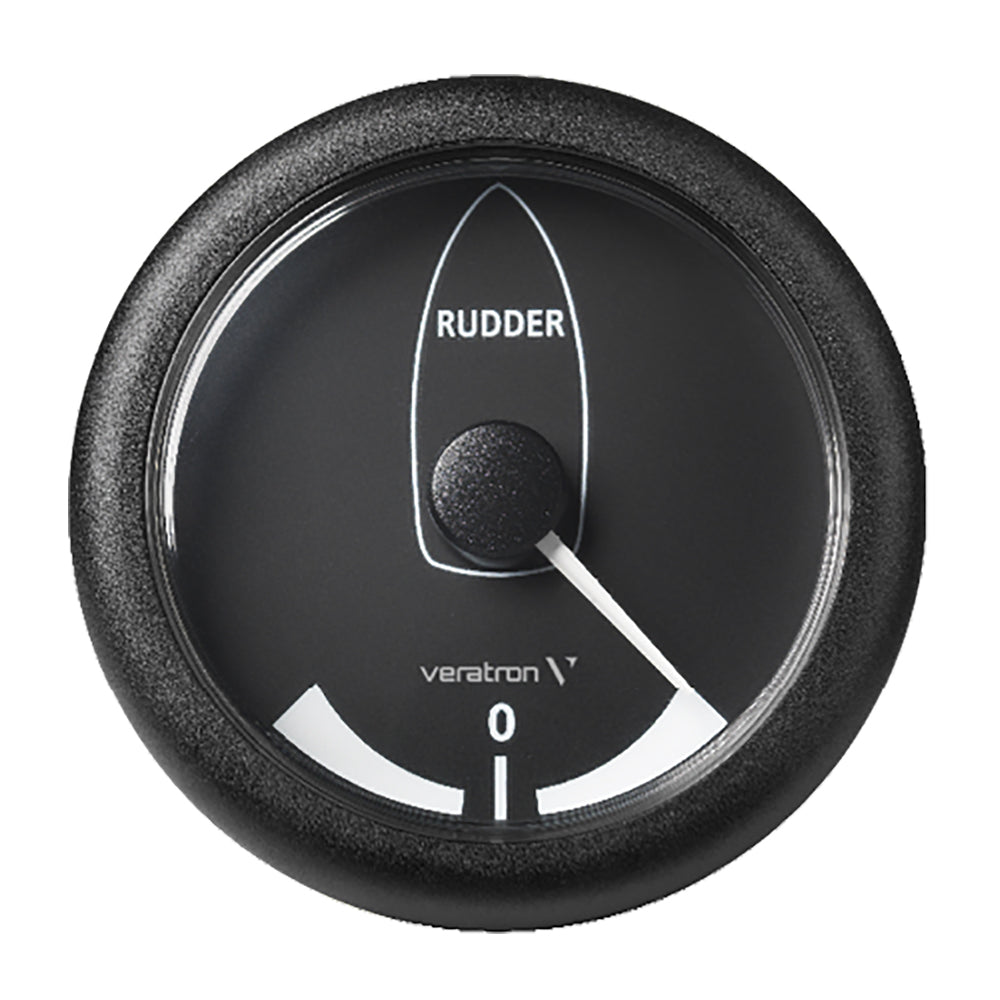

3-3/8" (85MM) ViewLine Rudder Angle Indicator -45°/+45° - 8 to 32V - Black Dial & Bezel

The ViewLine rudder angle instrument for wheel-controlled yachts and pleasure boats displays the current rudder position at all times. This indicator makes it easier to navigate out of harbors or through locks.

Only rudder instruments of the same diameter can be combined.

Specifications:

  • 8 and 14 pole Tyco / Hirschmann bush housing
  • Operating voltage 8 – 32 V
  • Accuracy +/- 2.5 % of full scale reading
  • Anti-fog double lens
  • Protection rating front IP67, rear IP52
  • 85 mm installation diameter
  • 50 mm installation depth
  • Operating temperature range -20 °C / +70 °C
  • Reverse polarity protection
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Voltage - Input Range (Volts): 8-32v
  • Gauge Size: 3-3/8"
  • Box Set: No
  • Series: ViewLine
  • Gauge Type: Rudder Angle
  • Box Dimensions: 4"H x 7"W x 8"L WT: 0.65 lbs
  • UPC: 7640178722279

Quick Guide (pdf)
