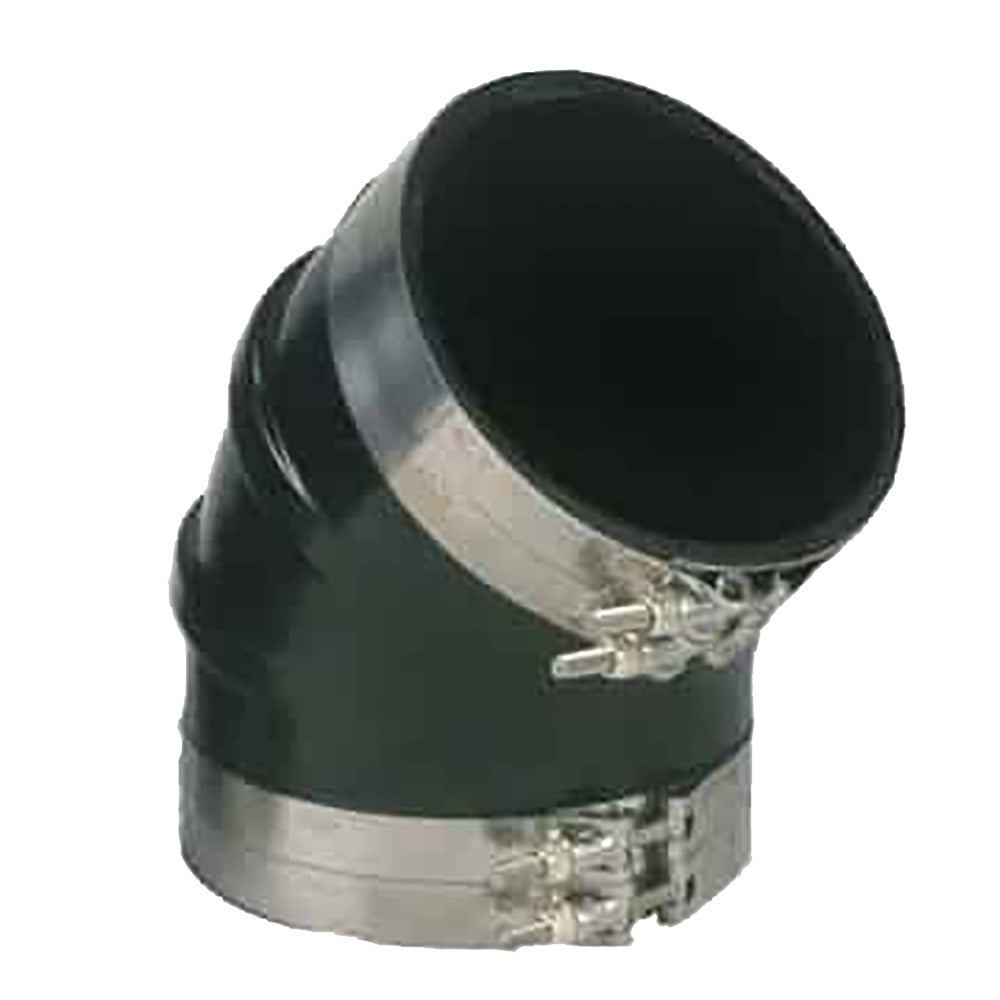

3" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel clamps are included
- This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
- Black high-temp EDPM rubber
Construction:
- Color: Black
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 250°F (121°C)
Specifications:
- Inner Diameter: (inch) 3” / (mm) 76.2
- Outer Diamter: (inch) 3.5" / (mm) 88.9

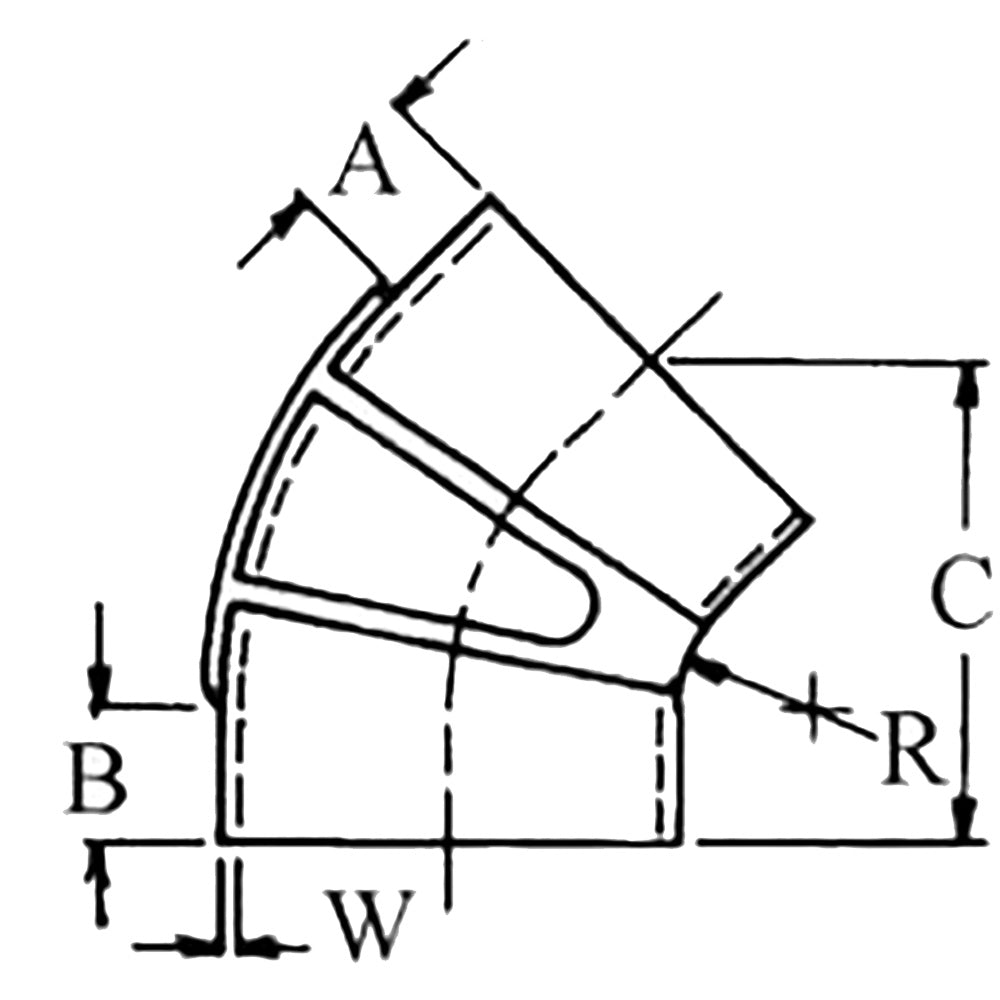

- A: (inch) 1.5” / (mm) 38.1
- B: (inch) 1.5” / (mm) 38.1
- C: (inch) 5.5” / (mm) 139.7
- W: (inch) 0.25” / (mm) 6.35
- Elbow Degree: 45 degrees
- Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27
Quick Guide (pdf)
