Trident Marine 1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot [148-1006-FT]

SKU: C-99605 In stock
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

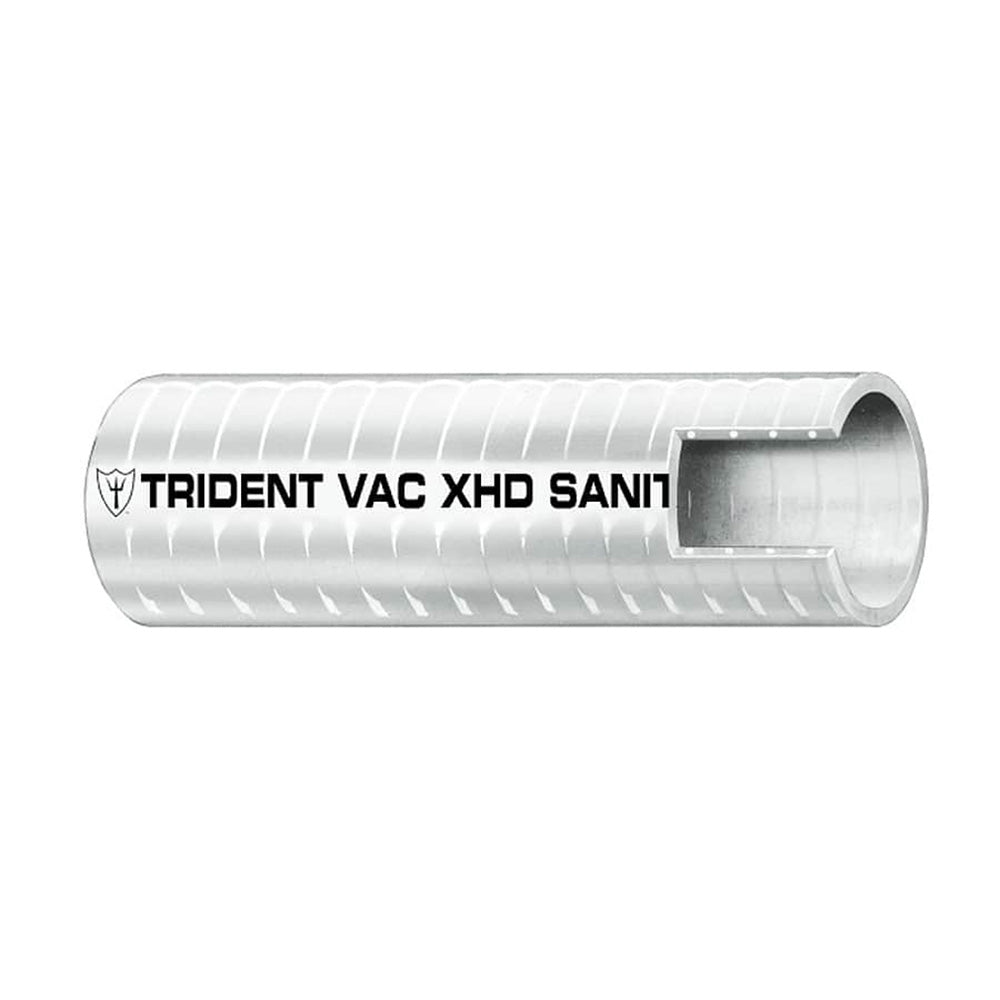

1" VAC XHD Sanitation Hose - Hard PVC Helix - White - Sold by the Foot

Trident Ply Extra heavy-duty sanitation hose of smooth white vinyl. Specially compounded to provide excellent resistance to odor permeation and (FDA) potable water fill. Also for the critical bilge, drain scuppers, live wells, etc. Self-draining installations are recommended for the longest odor-free service.

Features:

  • Sold by the foot
  • A hard PVC helix gives good flexibility and bend radius
  • No cuffs are required

Applications:

  • Specially compounded to provide resistance to odor permeation and (FDA) potable water fill
  • Also for critical bilge, drain scupper, live well, etc

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: White
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Inner Diameter: (inch) 1" / (mm) 25.4
  • Outer Diameter: (inch) 1.262" / (mm) 32.1
  • Working Pressure: (Psi Vac In./Hg) 28
  • Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.52
  • Bend Radius: (inch) 3" / (mm) 76.2

*Don't use with alcohol, anti-freeze, petrochemicals, or solvents

*Burst Pressure is 4 x Working Pressure

Specifications:

  • ID Diameter (inches): 1"
  • Box Dimensions: 1"H x 1"W x 1"L WT: 1 lbs

Quick Guide (pdf)
