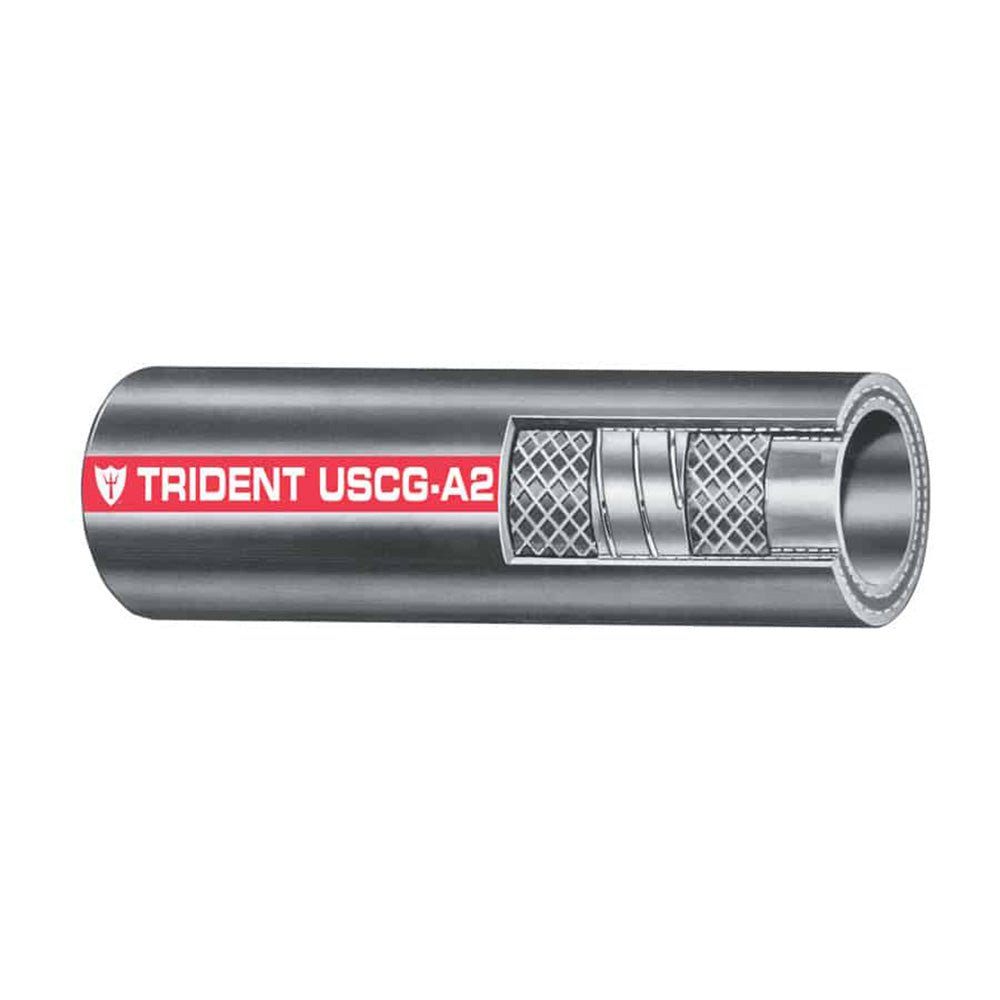

Trident Marine 1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot [327-1126-FT]

SKU: C-99617 In stock
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

1-1/2" Type A2 Fuel Fill Hose - Sold by the Foot

Trident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

  • Sold by the foot
  • This hose is built with the best fuel, fire, and age-resistant formulation
  • Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
  • Also, provides excellent bend-ability

Applications:

  • Marine Fuel Hose for fill and vent plus diesel distribution
  • Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

  • Tube & Cover: NBR / Neoprene
  • Reinforcement: High tenacity polyester 2 spiral, spring steel helix
  • Temperature Range: -20°F to 212°F (-20ºC to 100ºC)

Specifications:

  • Inner Diameter: (inch) 1/2" / (mm) 38
  • Outer Diameter: (inch) 2 / (mm) 51
  • Wall: (inch) 0.25 / (mm) 6.4
  • Working Pressure: (psi) 60 / (mpa) 0.41
  • Bend Radius: (inch) 5.5" / (mm) 140

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved


Quick Guide (pdf)
