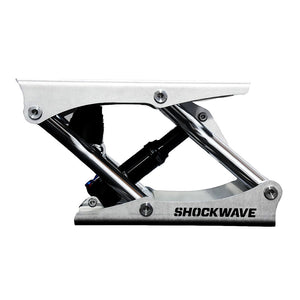

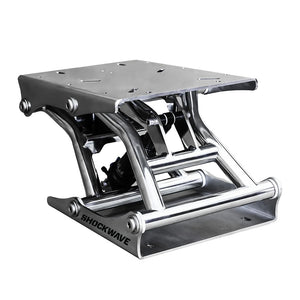

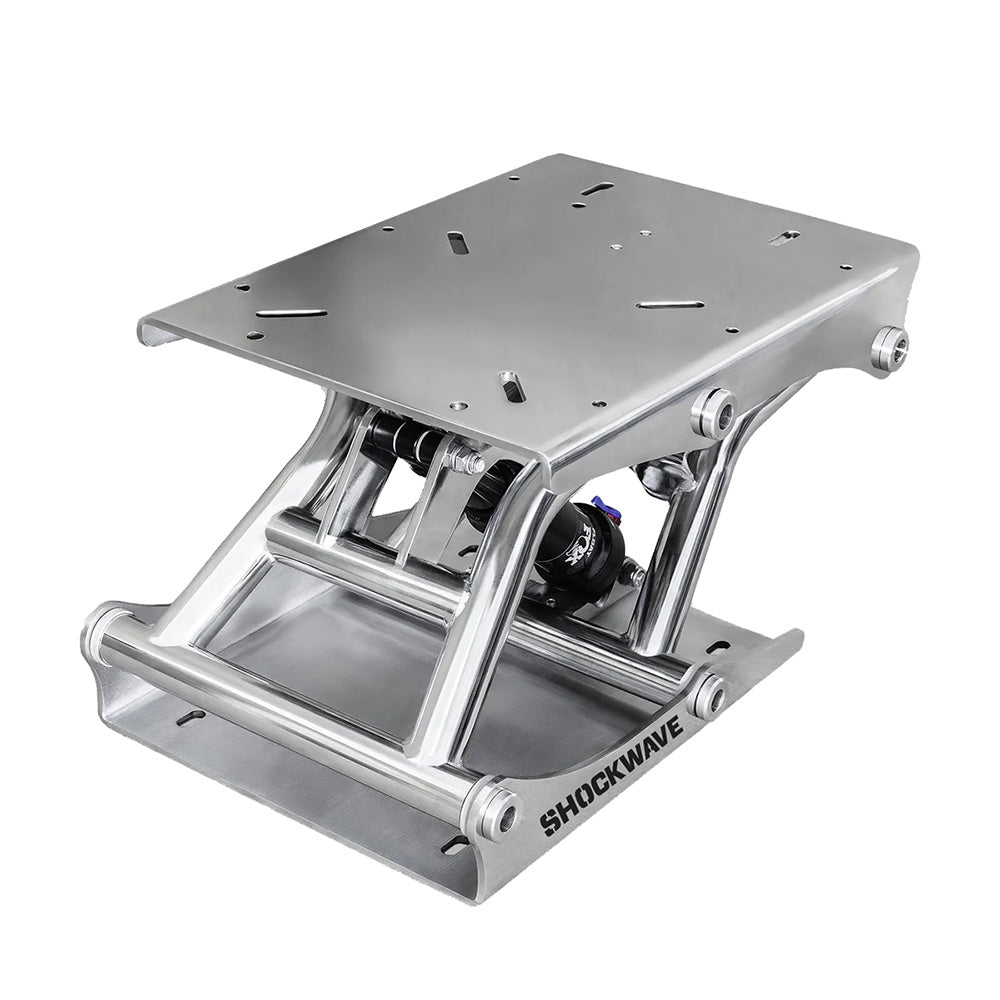

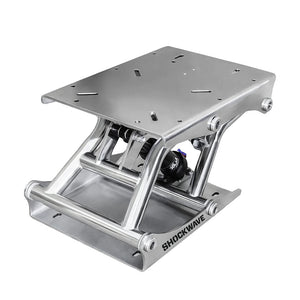

Shockwave S5-SS Suspension Base - Stainless Steel [SW-09108]

S5-SS Suspension Base - Stainless Steel

The Shockwave S5-SS stainless steel suspension base is the latest addition to the S5 product line. Welded construction using electropolished 316 stainless steel to last a lifetime. The Shockwave S5-SS is best suited for saltwater environments with high salinity, humidity, and moderate sea conditions.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound and compression, suspension travel is 4-inch vertical and 1.5-inch forward, using a four-link forward action, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine FOX Rhythm, air spring and shock with adjustable rebound and compression
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• Electropolished Welded 316 Stainless Steel
• 4-Link Forward Action
• Minimal parts count and simple construction
• Easy to mount and adapt to current seating
• Best for Professional Mariners Use in Heavy Seas

Vessel Application:

The S5-SS suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-SS can be fitted to almost any boat and any seat.
