Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]
Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]
Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]
Shadow-Caster LED Lighting

Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics [SCM-EAGLE-RAY-BK]

SKU: C-102988 Out of stock
Sold out Save
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

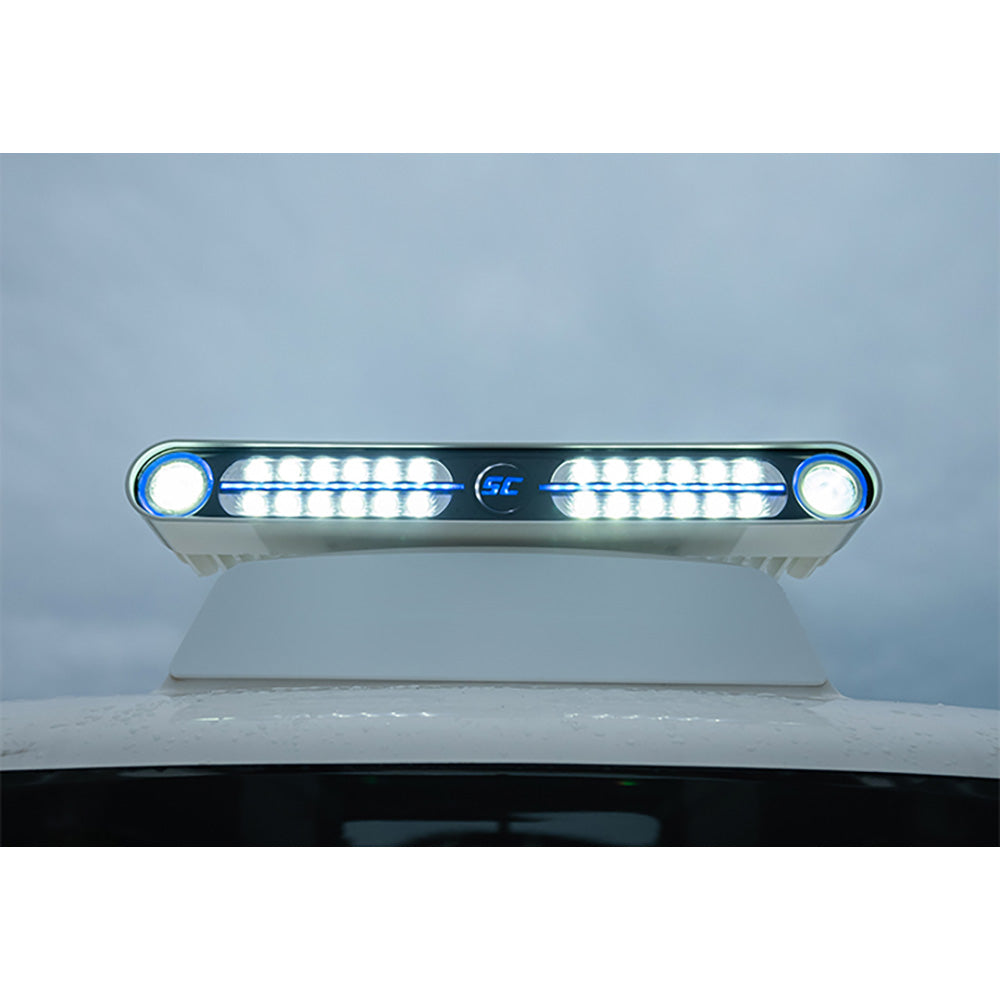

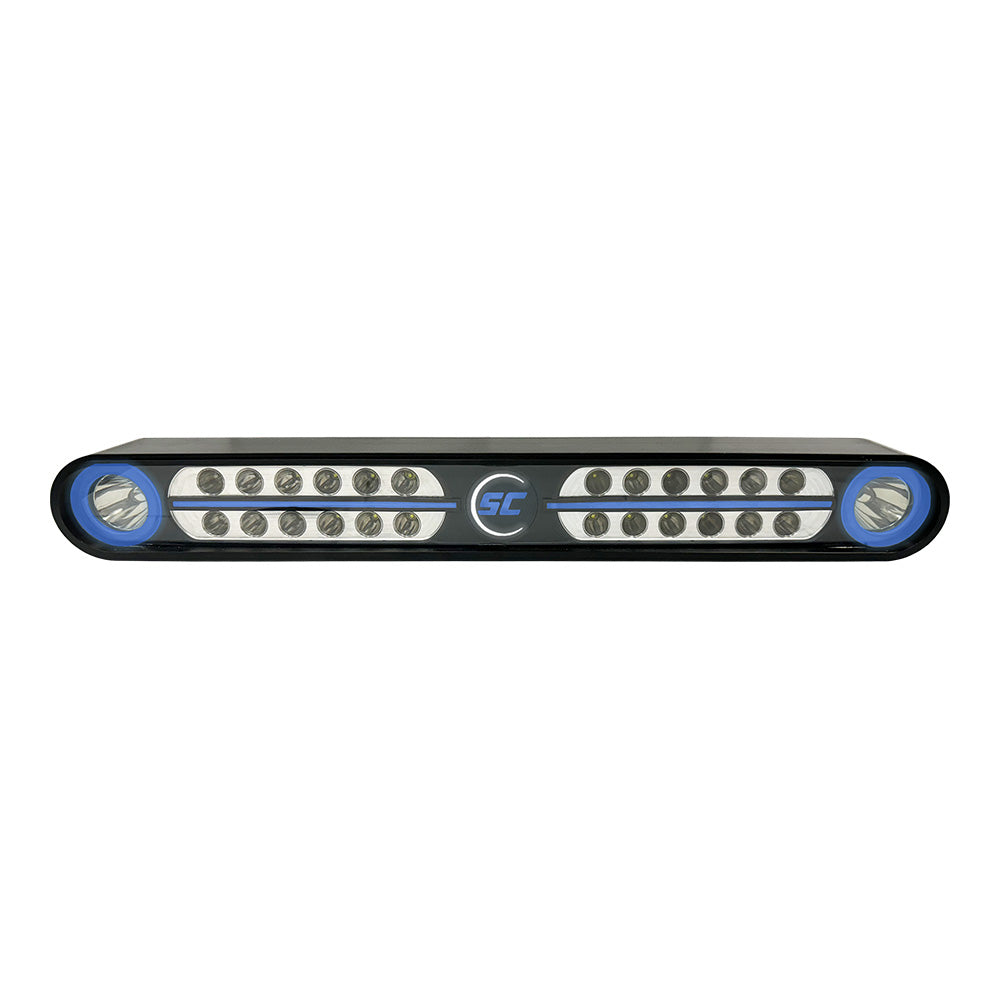

Eagle Ray LED Light Bar - Black Housing & Dual Optics

Utilizing automotive lighting technology and novel beam shaping optics, Shadow-Caster has created the Eagle Ray – a unique light bar with a combination of focused laser-driven white light beams and a wide 60-degree LED flood array to efficiently light the way.

The focused white lights are ideal for long-distance viewing and penetrating fog, rain, and mist. The beam angle and brightness are adjustable with a push button or the Shadow-Caster® NMEA 2000 Light Commander interface.

Laser Features:

  • Automotive-grade laser-driven white lights
  • Blue halo illumination around optics indicates a power state
  • Adjustable 5-100° beam angle control with a switch or MFD interface

Flood Features:

  • 24 bright white LEDs
  • Blue accent light strips indicate the brightness level
  • 60-degree beam angle
  • Adjustable brightness control with a switch or MFD interface

Technical Information:

  • 20,000 lumens
  • Billet Aluminum housing in black finish
  • Remote power trigger to provide simpler installation (main current supply is not controlled through a switch)
  • Borosilicate glass window
  • 10-30V input
  • 200W max power
  • 16.5A current draw at 12V DC
  • 2.5” H x 20” W x 5.4” D [65.3 x 506.5 x 136.9mm]

Control Options

On/off Push Buttons

Click the on/off button to turn the laser/flood lights on. Press and hold the button to adjust the beam angle (laser) or brightness (flood). Click the on/off button to turn the laser/flood lights off.

Standard Marine Rocker Switch

Click the rocker switch up/down button to turn the laser/flood lights on. Press and hold the switch up/down to adjust the beam angle (laser) or brightness (flood). Click the rocker switch up/down button to turn the laser/flood lights off.

Shadow-NET®/ NMEA 2000 Control

Full feature control through a Multi-Function Display (MFD). The Shadow-NET® Light Commander allows for easy and independent control of brightness and beam angle for the Eagle Ray Light Bar. Create and store pre-configured light settings for use as part of a lighting ‘scene’ for convenience at night.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Voltage - Input Range (Volts): 10-30v

Owner's Manual (pdf)
Brochure (pdf)
