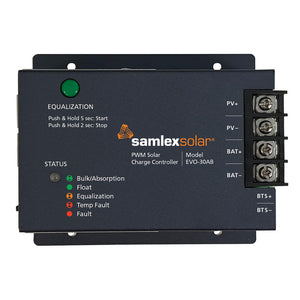

Samlex Solar Charge Controller - 12/24 PWM - 30 AMP [EVO-30AB]
Samlex America

Samlex Solar Charge Controller - 12/24 PWM - 30 AMP [EVO-30AB]

SKU: C-101610

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Solar Charge Controller - 12/24 PWM - 30 AMP

Use the Samlex EVO-30AB Charge Controller as a stand-alone 30 amp solar charge controller or expand the functionality of the EVO-RC-PLUS as the central display for both your EVO inverter/charger and your solar system.

Features:

  • When connected to the EVO™ inverter/charger, the EVO-30AB will follow the programming set in the unit.
  • Add the EVO-RC-PLUS and it will display the status for both the EVO™ inverter/charger and solar system from ONE remote display
  • Compatible with most battery types including Lead Acid and Lithium-Ion (LiFePO4) batteries.
  • Manage multiple panels up to 600W in a 12V system, or up to 1000W in a 24V system under specified conditions

Additional Features:

  • Optional 30AB-TS Battery Temperature Sensor available.
  • 30 Amp charging capacity
  • 8 charge settings for different batteries
  • Selectable battery equalization option
  • Use with 12/24V batteries
  • Compatible with EVO-RC-PLUS Remote Display (Optional)
  • Increased functionality when used with an EVO™ Series Inverter/Charger

Specifications:

  • Input: 12V / 24V
  • Amps: 30 Amp
  • Weight: 0.8 (lbs)
  • Weight: 0.36 (kg)
  • Dimensions: 4.81 x 1.87 x 4.15 (in)
  • Dimensions: 12.21 x 4.75 x 10.54 (cm)

Applications:

  • Recreation vehicles
  • Service vehicles
  • Boats
  • Fieldwork
  • Telecommunications
  • Mobile offices
  • Construction sites

Quick Guide (pdf)
Owner's Manual (pdf)
