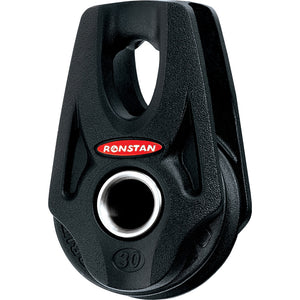

Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing head [RF35101]
Ronstan

Ronstan Series 30 Ball Bearing Orbit Block - Single - Becket - Lashing head [RF35101]

SKU: C-55174 In stock
Regular price
Quantity:

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Series 30 Ball Bearing Orbit Block™ - Single - Becket - Lashing Head

Ball Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options.
Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.

Features:

  • Lightweight
  • Highest working load in its class
  • Secure, versatile and secure attachement
  • Low profile and compact
  • Ultra low profile thru-sheave becket
  • RF35101 accepts RF1850S shackle in both orientations to create a conventional loop top block
  • Self-lubricating Nylatron® sheave and full contact bearing for high dynamic loads


Applications:
  • Mainsheet systems and spinnaker sheets on dinghies to 5M(16')
  • Halyard, vang and backstay applications on boats to 5M(16')
  • Control line applications on larger yachts


Materials:
  • Sheave: High compression strength carbon black Acetal
  • Ball Bearings: High compression strength Acetal
  • Frame/Cheeks: Toughened, glass fiber reinforced Nylon
  • Link: UV stabilized, multi-strand impregnated SK75 Dyneema®


Specifications:
=Sheave Ø:t30mm(1-3/16")
Max. Rope Ø:t8mm(5/16")
M.W.L.:t300kg(660lbs)
B. L.:t600kg(1,320lbs)
Weight:t22g(0.8oz)

Quick Guide (pdf)
