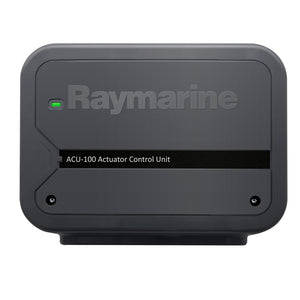

Raymarine ACU-100 Actuator Control Unit [E70098]

SKU: C-49108

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Up To $4,000 Back on Qualifying Purchase Amounts UNTIL 03/31/2024 VIEW

Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output
Maximum continuous 7 Amps at supply voltage
Drive Clutch Output
No clutch connection

Connections

  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground

Nominal supply voltage
12 V
Operating voltage range
10.8V to 15.6V dc
Power Consumption (standby) - Main Power Supply
300 mA (12V)
Power Consumption (standby) - SeaTalkng Power Supplyt
No power supply to SeaTalkng
SeaTalkng LEN (Load Equivalency Number)
1
SeaTalkng Power Out
No power supply to SeaTalkng
Data Connections
SeaTalkng

Installation Environment
  • Operating Temperature: -20°C to +55°C (-4°F to +131°F)
  • Storage Temperature: -30°C to +70°C (-22°F to +158°F)
  • Relative Humidity: MAX 93%

Waterproof rating
  • Connector Panel: IPX2
  • Drive Electronics: IPX6


Dimensions (W x H x D)
180mm x 140mm x 52mm (7.1 in x 5.5 in x 2.0 in)
Weight
0.6 kg (1.32lbs)

Conformance
  • Europe: 2004/108/EC
  • Australia and New Zealand: C-Tick, Compliance Level 2

Specifications:

  • Type: Parts
  • Box Dimensions: 4"H x 8"W x 12"L WT: 2 lbs
  • UPC: 723193768907
