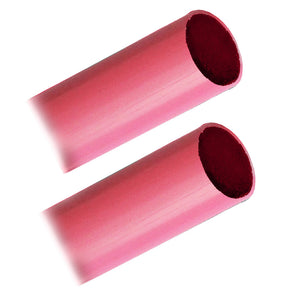

Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 °C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

Applications:

  • Splice sealing
  • Primary insulation
  • Cable/jacket repair
  • Direct burial/submersible
  • Strain relief

Specifications:

  • Expanded Inner Diameter: 1.1"
  • Recovered Inner Diameter: 0.367"
  • Application Range AWG: 1/0 - 4/0 (.40 - .95)
  • Recovered Wall Thickness: 0.12"

Compliances:

  • MIL-I-23053/15 Class 2

Brochure (pdf)

Battery Cable Heavy Wall Heat Shrink Tubing - 1" x 12" - Red (2-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated.  When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic.  Insulation varies with different types of wires, different diameters or tubing may be required.  When choosing a size, consider any components or connectors that may need to be covered.

Features:

  • Highly abrasion and impact-resistant
  • Easy installation, shrinks when heated over 120 °C
  • The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum
  • A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.
  • Any connection in harsh conditions
  • Adhesive lining provides a barrier against contaminants
  • Excellent resistance to acids and alkalis
  • Good resistance to fuel, oil, and solvents

Applications:

  • Splice sealing
  • Primary insulation
  • Cable/jacket repair
  • Direct burial/submersible
  • Strain relief

Specifications:

  • Expanded Inner Diameter: 1.1"
  • Recovered Inner Diameter: 0.367"
  • Application Range AWG: 1/0 - 4/0 (.40 - .95)
  • Recovered Wall Thickness: 0.12"

Compliances:

  • MIL-I-23053/15 Class 2

Brochure (pdf)
