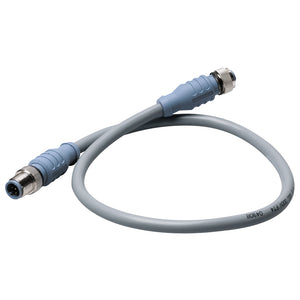

Maretron Mid Double-Ended Cordset - 2 Meter - Gray [DM-DG1-DF-02.0]
Maretron

Maretron Mid Double-Ended Cordset - 2 Meter - Gray [DM-DG1-DF-02.0]

SKU: C-46990

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Maretron Mid Double-Ended Cordset - 2 M Gray

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Cable Length (Feet): 6'
    • Box Dimensions: 1"H x 7"W x 9"L WT: 0.5 lbs
    • UPC: 873804001784
    •

    Maretron Mid Double-Ended Cordset - 2 M Gray

    Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"

    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3

    Specifications:

    • Cable Length (Feet): 6'
    • Box Dimensions: 1"H x 7"W x 9"L WT: 0.5 lbs
    • UPC: 873804001784
