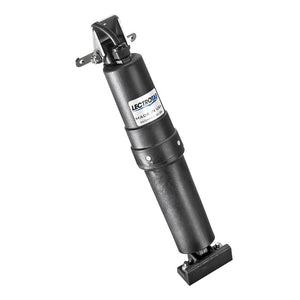

Heavy-Duty 12V Actuator - 6' Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. The heavy-duty actuator features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time.

Features:

  • Stainless Steel upper mounting bracket
  • Reinforced actuator upper mounting boss
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes an internal pressure equalization system
  • Upgrades to the most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Quiet operation
  • All actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure that cannot corrode and will not deteriorate in the sun or under water

Heavy-Duty 12V Actuator - 6' Cable

Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. The heavy-duty actuator features a reinforced upper mounting boss and a 12-gauge stainless steel upper bracket. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time.

Features:

  • Stainless Steel upper mounting bracket
  • Reinforced actuator upper mounting boss
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes an internal pressure equalization system
  • Upgrades to the most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Quiet operation
  • All actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure that cannot corrode and will not deteriorate in the sun or under water
