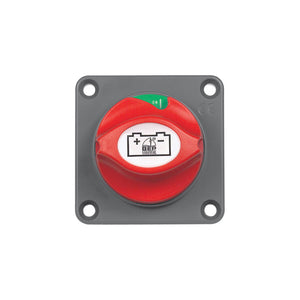

BEP 701-PM Contour Panel Mounted Manual Battery Master Switch
BEP

BEP 701-PM Contour Panel Mounted Manual Battery Master Switch

SKU: L-969-701PM

Help

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com
2 POSITION - ON/OFFThe 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45º position. The control knob also features an interchangeable labeling system allowing a full range of applications. A removable rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Can be either surface or recess mounted by cutting a 2-1/16" hole. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.

  • Compact, lightweight
  • Removable key
  • Countersunk recesses for surface mount application
  • Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
  • Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
  • Amps: 275 (Continuous)
  • Mount Type: Panel Mount
  • Rating: Continous: 275, Intermittent: 455, Cranking: 1250
  • Size: 2-11/16"W x 2-11/16"H x 2-5/8"D
  • Stud Size: 2 x 3/8 inch
  • Voltage: 17685
2 POSITION - ON/OFFThe 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45º position. The control knob also features an interchangeable labeling system allowing a full range of applications. A removable rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Can be either surface or recess mounted by cutting a 2-1/16" hole. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.

  • Compact, lightweight
  • Removable key
  • Countersunk recesses for surface mount application
  • Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
  • Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
  • Amps: 275 (Continuous)
  • Mount Type: Panel Mount
  • Rating: Continous: 275, Intermittent: 455, Cranking: 1250
  • Size: 2-11/16"W x 2-11/16"H x 2-5/8"D
  • Stud Size: 2 x 3/8 inch
  • Voltage: 17685
