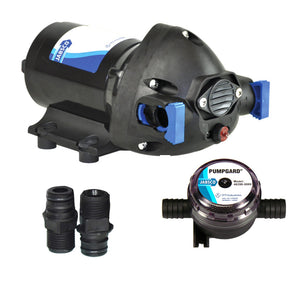

Par-Max Shower Drain/General Purpose Pump - 3.5GPM-25psi-12VDC with Strainer

Long-life fully serviceable shower drain pump.

Features:

  • 3.5 GPM (13.2 lpm) at 3ft (1m) head
  • Self-priming up to 10ft (3m) allows mounting above wet bilges
  • Diaphragm design allows extended dry running
  • Continuous rated, heavy duty motor sealed for harsh bilge environments
  • Thermal overload protection automatically stops the motor if it overheats due to overloading, with an auto re-start feature
  • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
  • ISO 8849 MARINE (Bilge Pump Standard)
  • Complete with Pumpgard
  • Oil resistant elastomers
  • Fitting: Connections for 3/4" (19mm ) ID hose
  • Size: 7.7" long x 4.2" wide x 4.1" high (19.6cm x 10.6cm x 10cm)
  • Weight: 5.0lb (2.1kg)

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

  • Gallons Per Minute: 3.5 GPM
  • Max PSI: 25
  • Volts: 12v
  • Box Dimensions: 5"H x 7"W x 13"L WT: 6.5 lbs
  • UPC: 671880595667

Owner's Manual (pdf)

Par-Max Shower Drain/General Purpose Pump - 3.5GPM-25psi-12VDC with Strainer

Long-life fully serviceable shower drain pump.

Features:

  • 3.5 GPM (13.2 lpm) at 3ft (1m) head
  • Self-priming up to 10ft (3m) allows mounting above wet bilges
  • Diaphragm design allows extended dry running
  • Continuous rated, heavy duty motor sealed for harsh bilge environments
  • Thermal overload protection automatically stops the motor if it overheats due to overloading, with an auto re-start feature
  • Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
  • ISO 8849 MARINE (Bilge Pump Standard)
  • Complete with Pumpgard
  • Oil resistant elastomers
  • Fitting: Connections for 3/4" (19mm ) ID hose
  • Size: 7.7" long x 4.2" wide x 4.1" high (19.6cm x 10.6cm x 10cm)
  • Weight: 5.0lb (2.1kg)

WarningWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

  • Gallons Per Minute: 3.5 GPM
  • Max PSI: 25
  • Volts: 12v
  • Box Dimensions: 5"H x 7"W x 13"L WT: 6.5 lbs
  • UPC: 671880595667

Owner's Manual (pdf)
