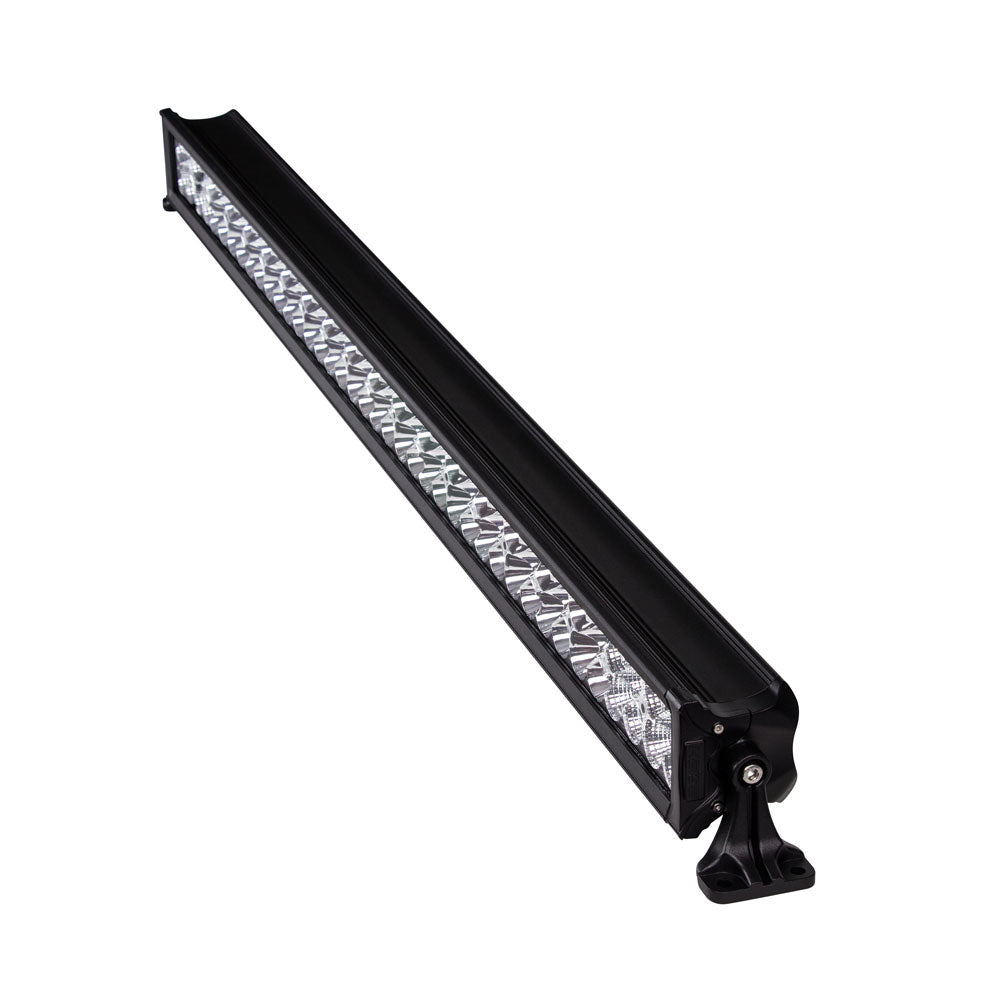

Triple Row LED Light Bar - 50"

Specifications:

  • Input Voltage: 10–30V DC
  • Wattage: 300W (100–3W OSRAM LEDs)
  • Raw Lumens: 24000
  • LUX @ 10M: 6500
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°)/Spot(8°)

Construction:

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast aluminum
  • Hole Dimensions: Brackets turned outward – 53.125"
  • Mounting Bolt Drill – .25"
  • Height of Light Bar Itself: 3.50"
  • Depth of Light Bar Itself: 3.25"
  • Length of Bar w/o Mounting Brackets: 50.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

Operation:

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: 18 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Beam Pattern: Spot-Flood Combo
  • Length (Inches): 50"
  • Housing: Black
  • Voltage - Input Range (Volts): 12/24v
  • Box Dimensions: 6"H x 9"W x 57"L WT: 17.5 lbs
